FrSky XHT - DIY Telemetry Module


Regular price$42.25
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

Breathe some new life into your old radio.

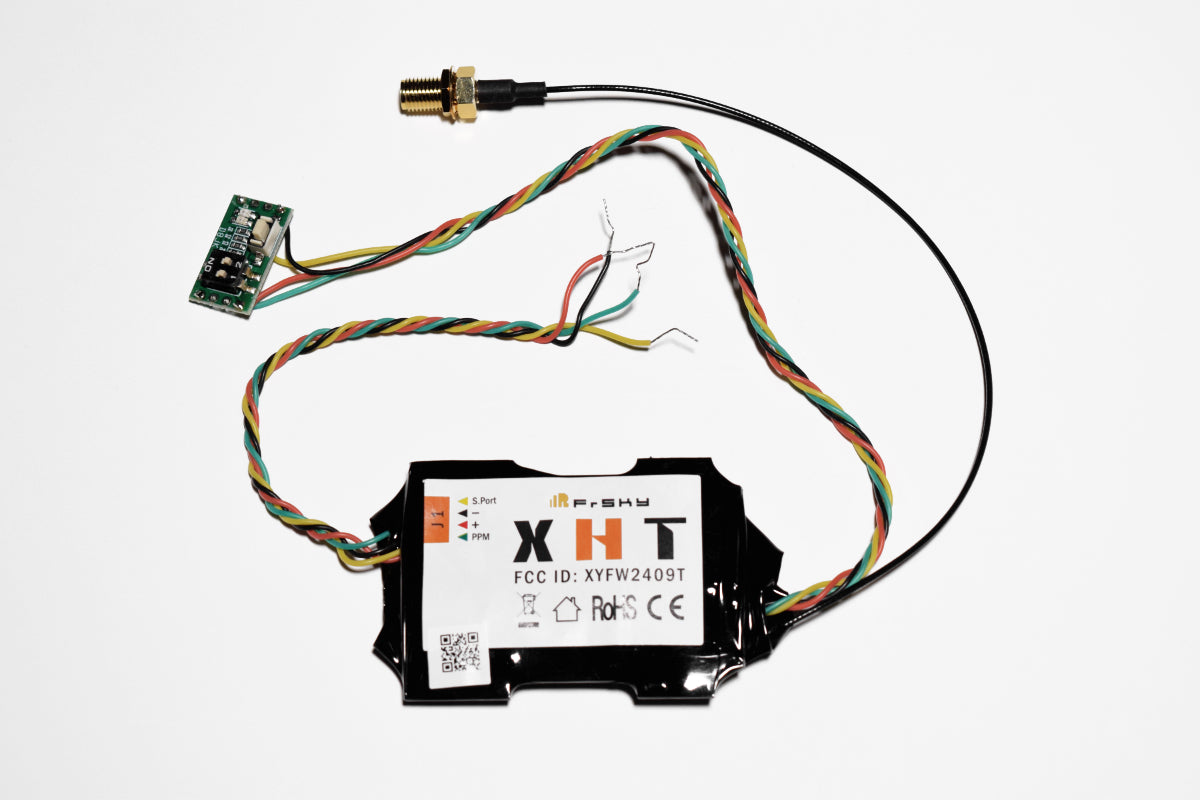

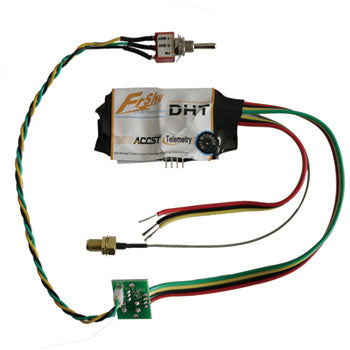

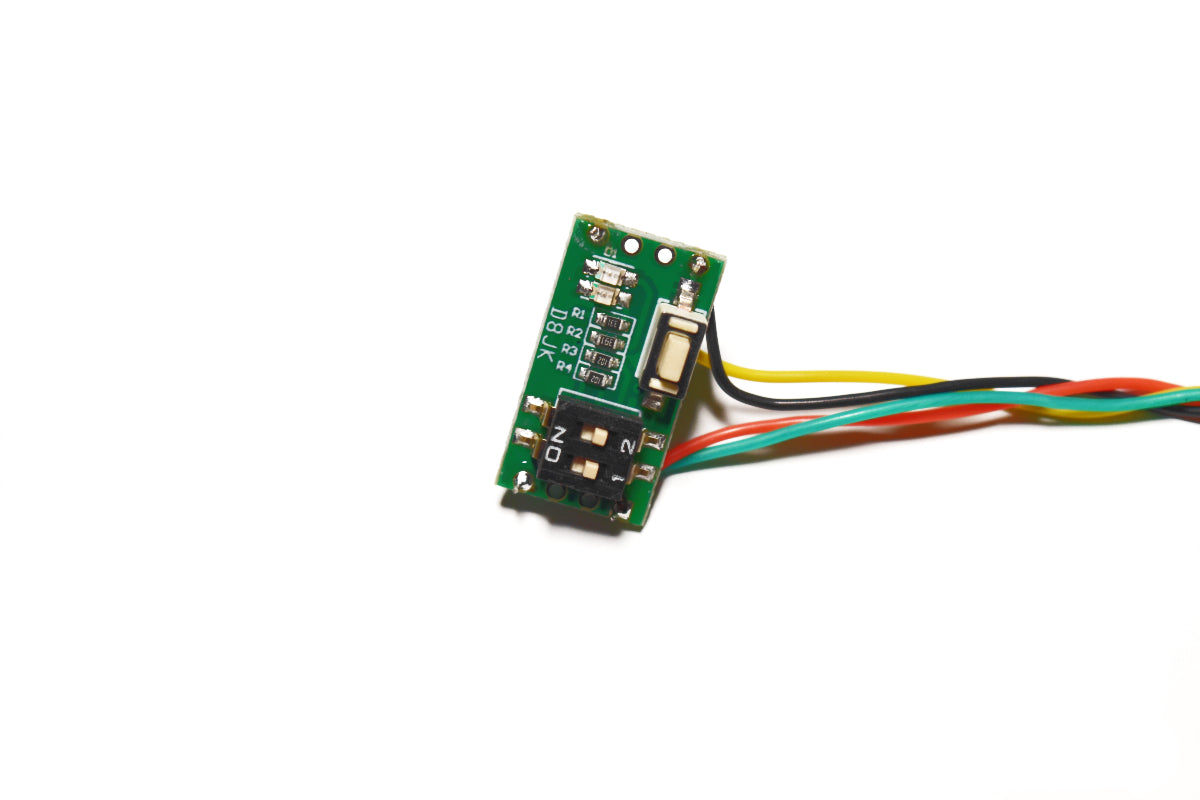

If you remember the old DHT module that allowed you to convert almost any vintage radio to 2.4Ghz then say hello to it's replacement, the XHT. Unlike its predecessor which could only work with V and D series receivers, the XHT can operate in D8, D16, and even LR12 via two small configurable switches.

Out of the box it comes with ACCST firmware (v1) and is Smart Port enabled allowing for full telemetry and firmware updates. It can even automatically determine antenna condition, giving audible alerts if anything is wrong. We think these will be great for those with radios with no module bay or for those with vintage radios they want to give a new life.

Specs:

Operating Voltage 6 - 15V
Operating Current 140mA @6V, 80mA @12V
Output Power ≤ 100MW
Modulations PXX or CPPM (auto detected)
Modes D8, D16, LR12 (selectable)
Telemetry Interface Smart Port
Upgrade Interface Smart Port
Modulation 2-FSK

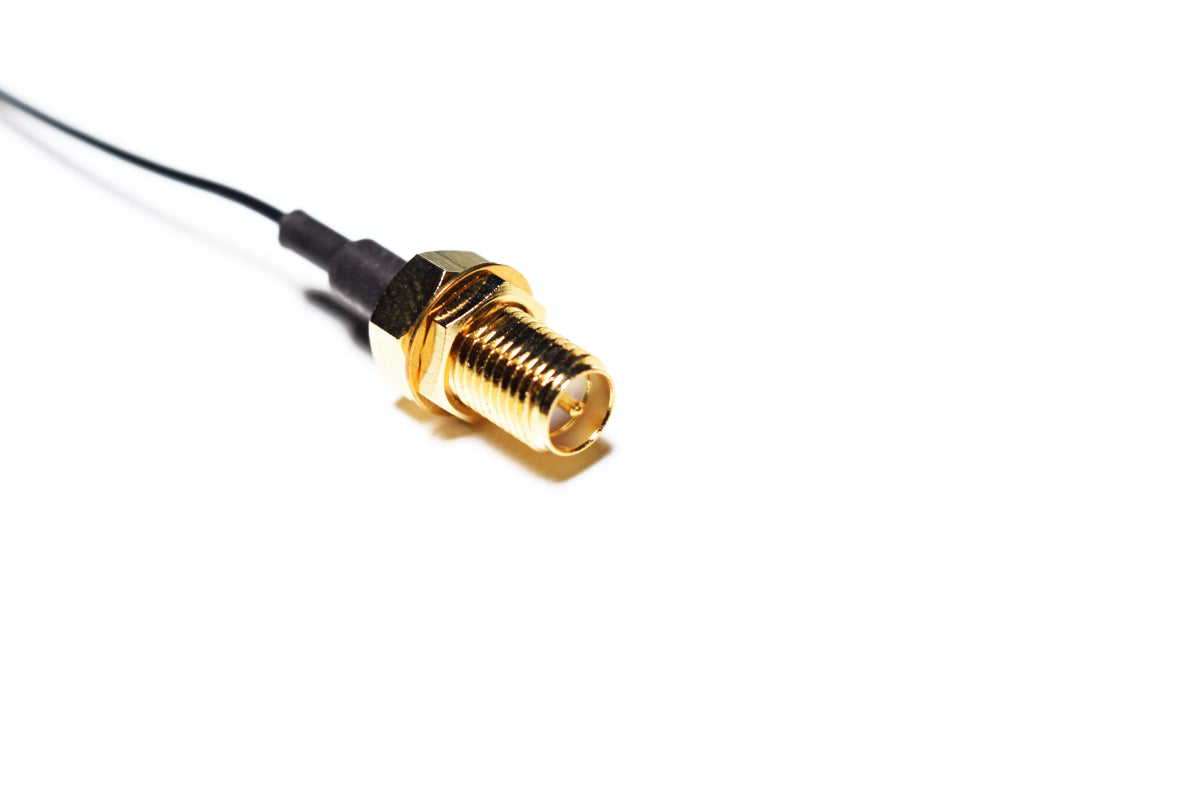

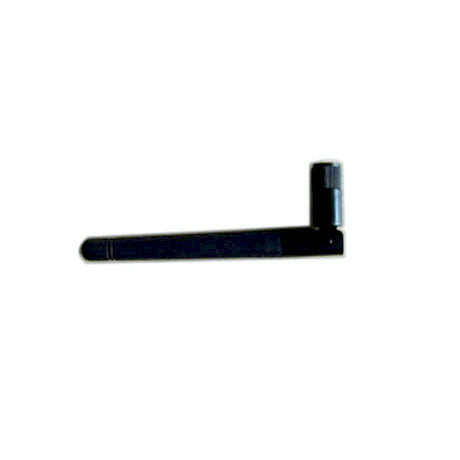

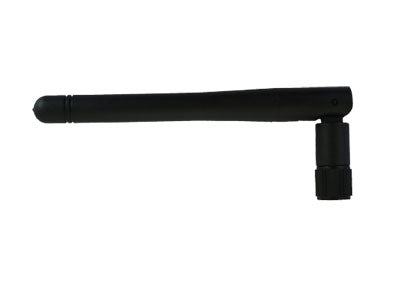

Antenna Type External
Max ERP/IERP ≤ 20 dBm
RF Frequency (ies) 2405-2474 (TX/RX)
