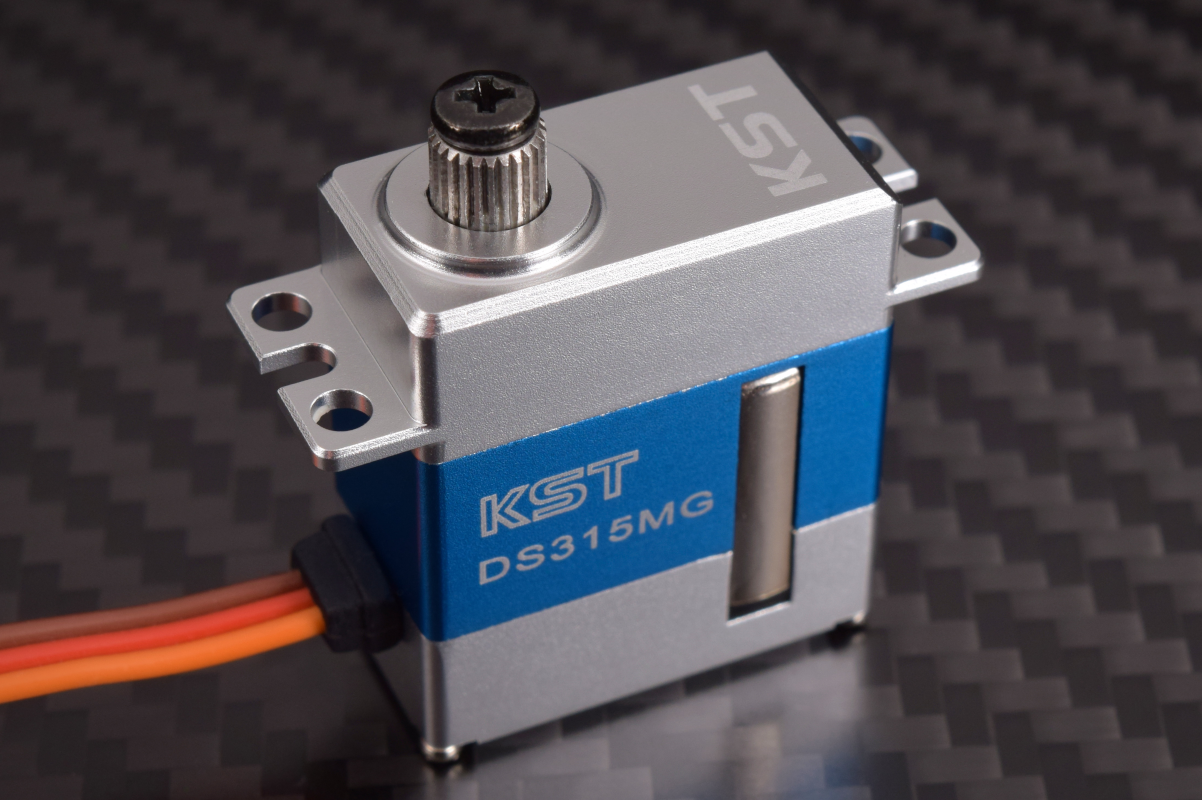

The KST DS315MG high voltage servo is an amazing work horse for it's size! Capable of running on 8.4 volts, and at great speed. This servo is ready to perform.
KST has yet another awesome servo with the DS315MG. It is blistering fast even when run on 6 volts. A great servo for applications where high speed, precision and strength are needed.
|MOTOR TYPE:||12mm Coreless|
|STALL TORQUE:||2.8Kg.cm (38.88 oz-in)@4.8v | 3.5Kg.cm (48.60 oz-in)@6v | 4.3Kg.cm (59.71 oz-in)@7.4v | 4.8Kg.cm (66.65 oz-in)@8.4v|
|SPEED:||.10sec/60°@4.8V | .09sec/60°@6V | .08sec/60°@7.4V | .07sec/60°@8.4V|
|DIMENSIONS:||23mm X 12mm X 26.7mm|
|WEIGHT:||20 grams (0.70 oz)|
|OPERATING VOLTAGE:||4.8 to 8.4v|
