KST X06N - 1.8Kg (24.99 oz in), .07-sec - Wide Voltage


Regular price$41.55
/
Shipping calculated at checkout.

  • Low stock - 8 items left
  • Inventory on the way

Years in the making, KST hits a homerun!

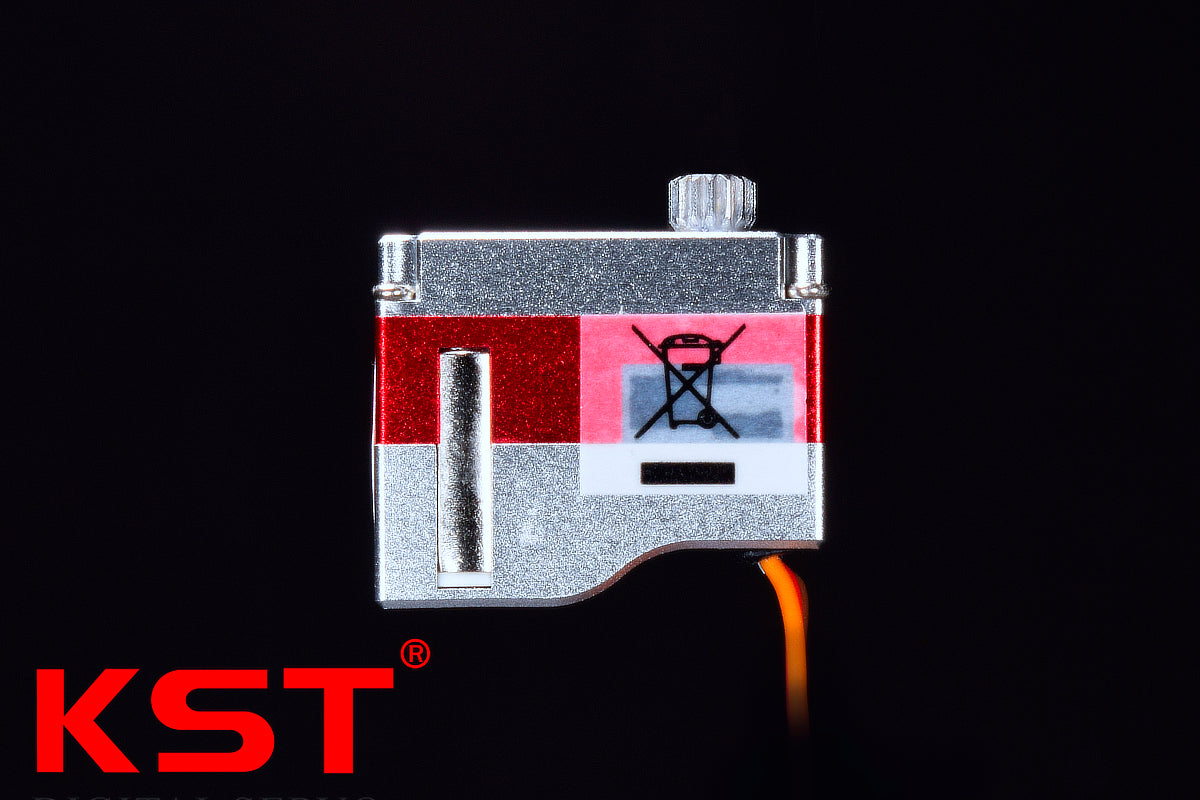

From KST comes the anticipated X06N nano servo, ready for all your DLG and small model needs. Inside is a powerful coreless motor and a beefy hardened steel gear train and the output spline is supported by a high quality ball bearing. It features a wide voltage range, from 3.8v all the way to 8.4v allowing for 1s and 2s Lipo operation.

Other features are incredible torque, more than enough speed and is only 7mm thick, making it a great choice for DLG and micro R/C use. Rest assured, just like all KST servos you can expect some of the best centering in the class, and the power to hold center.

Included Accessories:

  • 2x Single output arm
  • 1x Double output arm
  • 1x Low Profile double output arm
  • Mounting Hardware

Specs:

Servo Type

Digital

Gear Type

Metal (Hardened Steel)

Motor Type

Coreless

Stall Torque

0.8Kg-cm (11.10 oz-in) @3.8V
1.5Kg-cm (20.83 oz-in) @6.0V
1.8Kg-cm (24.99 oz-in) @8.4V

Speed

0.12sec/60°@3.8V

0.08sec/60°@6.0V

0.07sec/60°@8.4V

Deadband

0.002ms (2us)

Voltage Range

3.8 - 8.4V (1s-2s LiPo)

Weight

6g

Dimensions

20 x 7 x 16.6mm
