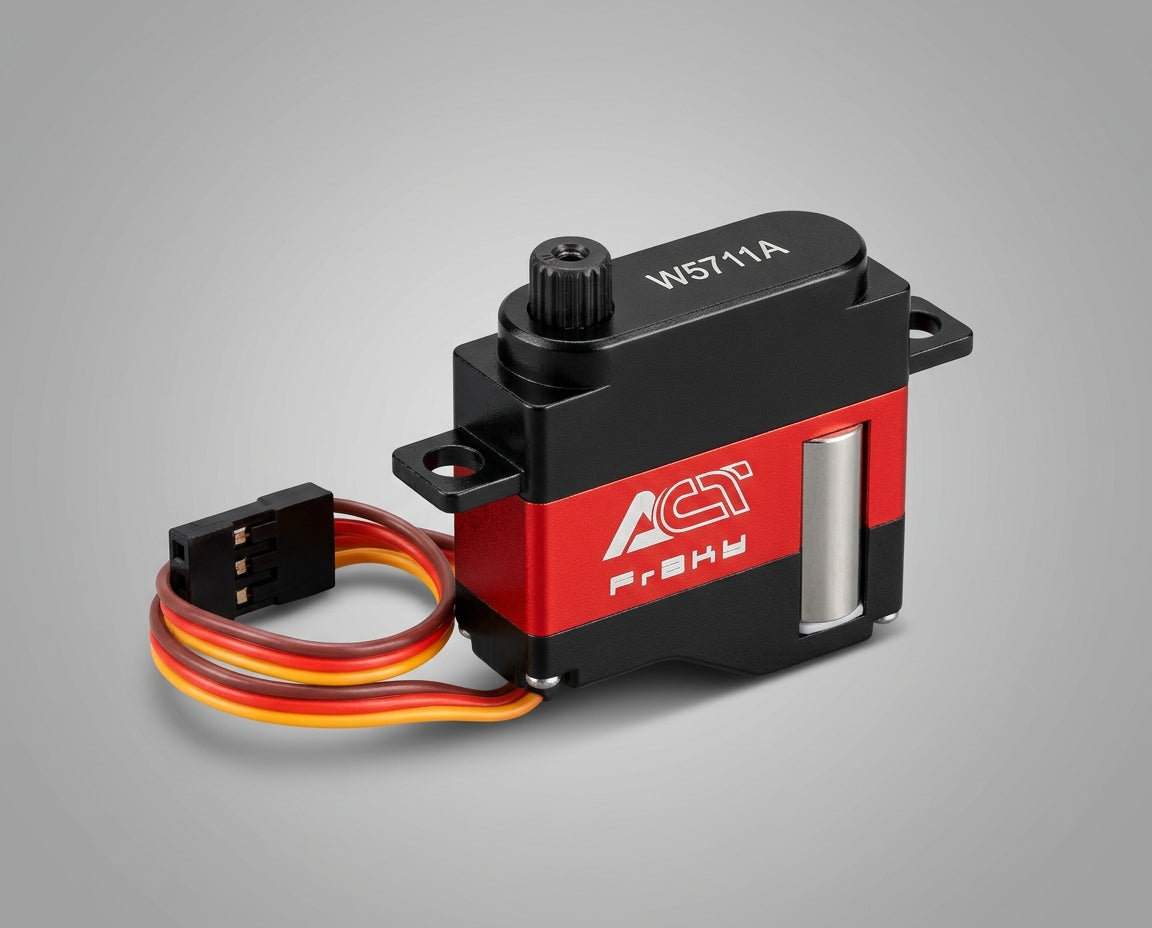

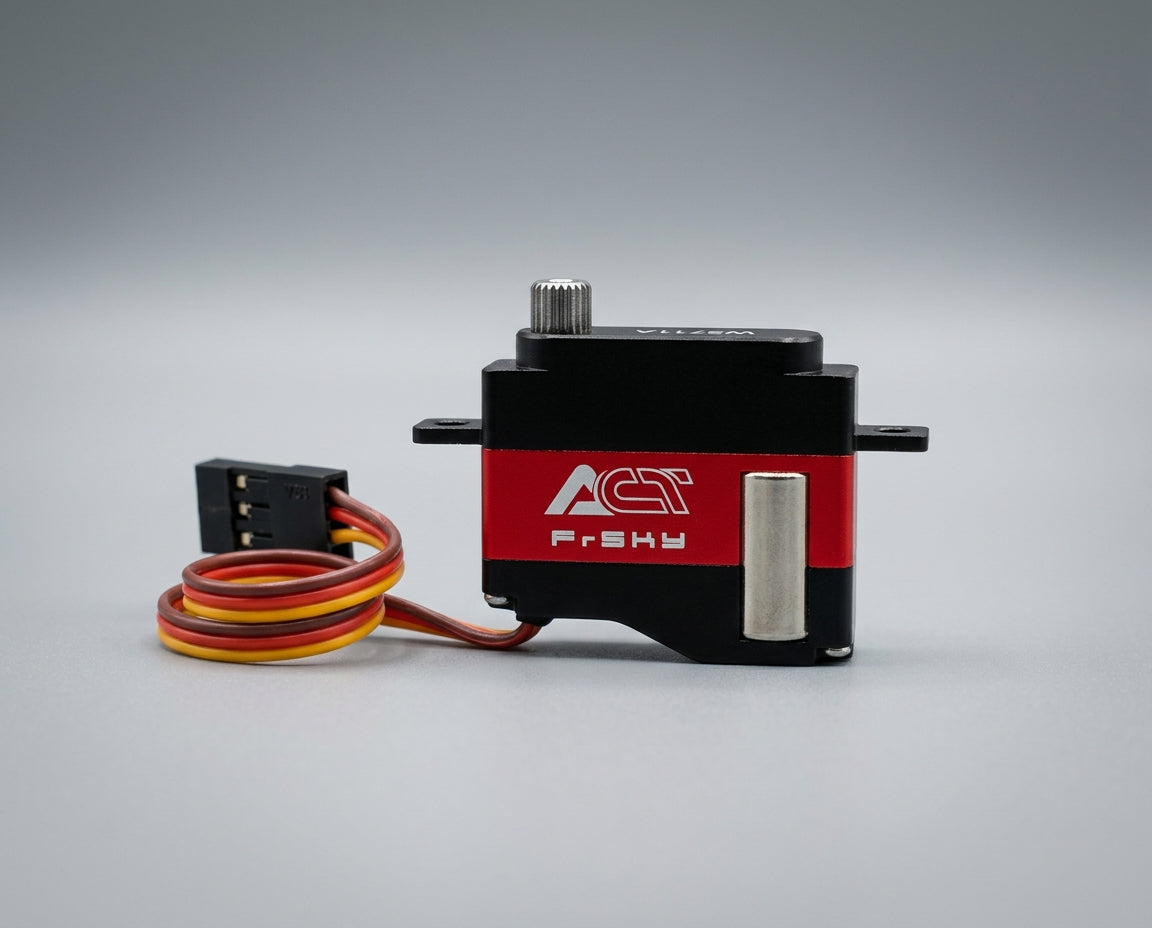

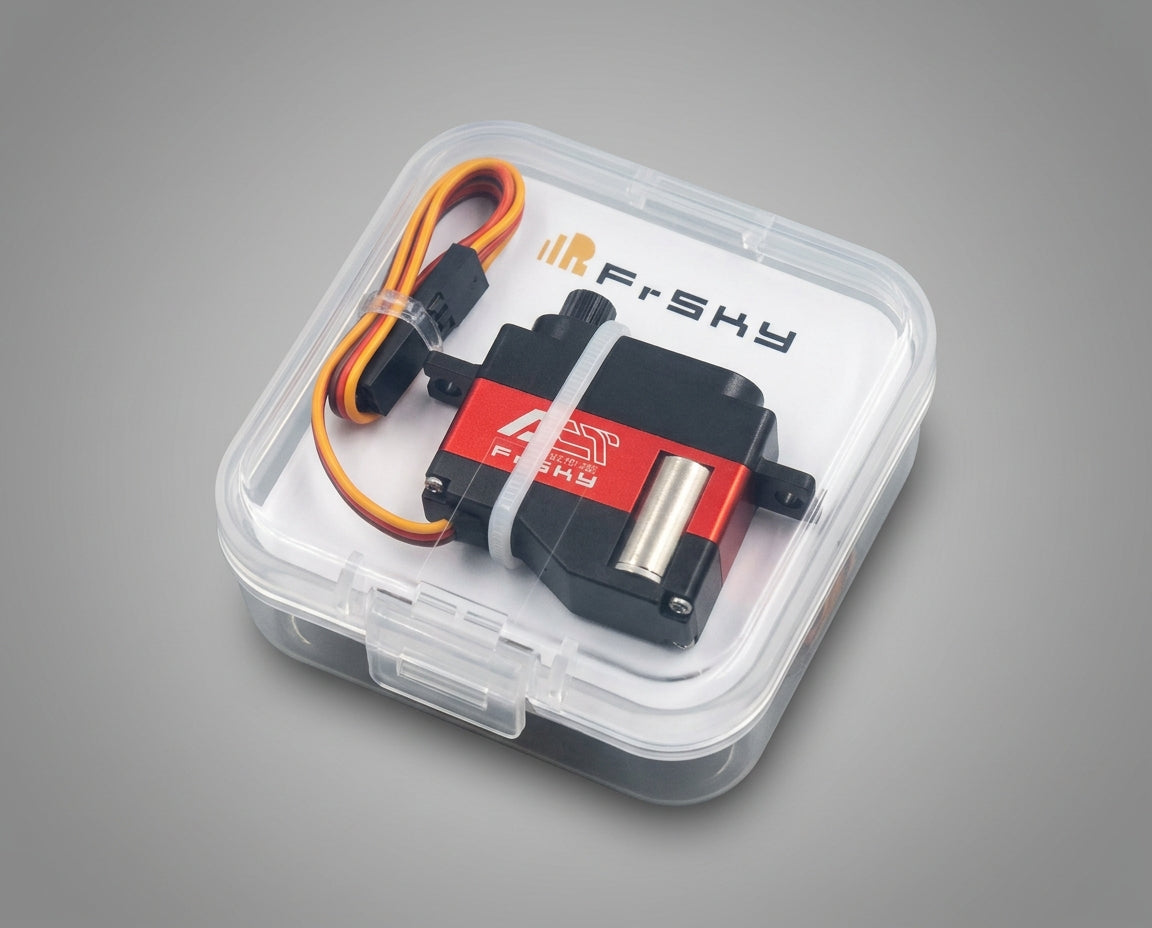

FrSky ACT W5711A Servo / 2.3kgf (32oz-in) / 0.08sec/60°
- In stock, ready to ship
Aloft is excited to share these servos with you, finally a great 6mm servo for a great price. Great for DLG and other applications where you need a high quality servo that takes up very little space, and at just 7.2 grams, she wont turn your plane into a tank!
The FrSky Act series coreless servos utilize a fully CNC machined aluminum case and metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and good torque performance in a very small package.
Unlike other FrSky servos, the ACT line offers no telemetry. This is a "normal" servo. Like all almost all servos on the market, this servo is happy to connect to just about any receiver regardless of brand.
Features:
- High durability with metal gear and all-aluminum CNC machined protective case
- 8.4V high voltage capable operation with high speed and big torque performance for a tiny size.
- Built-in dual precision balls bearing with potentiometer sensor
Specs:
- Dimensions: 23x6x20.7mm
- Output shaft: 4mm, 15 tooth
- Stall current: .45A @ 6V, .52A @ 7.4V, .62A @ 8.4V
- Weight: 7.2 grams
- Voltage: 4.8 to 8.4V
- Motor: Coreless
- Travel range: 90 degreees
- Torque: 1.7kgf.cm (23.6oz-in) @ 6V, 2.3 kgf.cm (31.9 oz-in) @ 8.4V
- Speed: .13 sec/60° @ 6V, 0.08 sec/60° @ 8.4V
