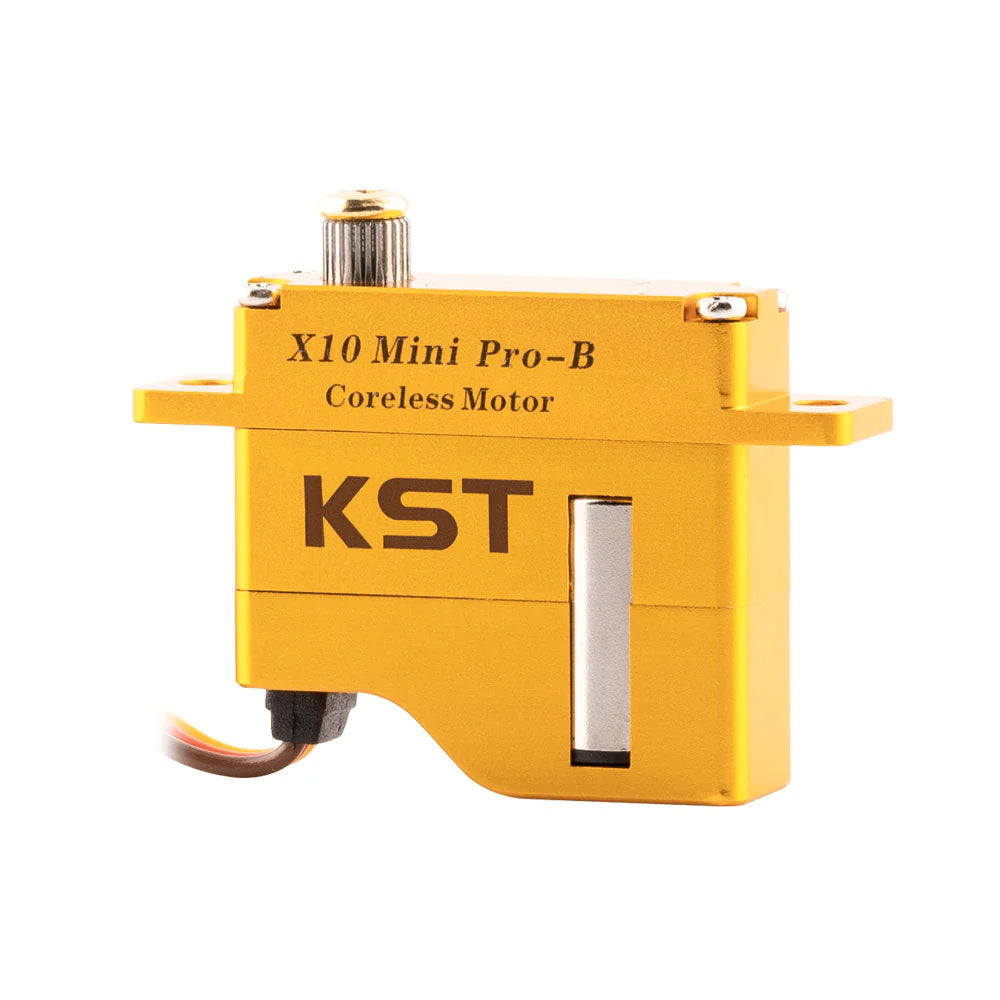

KST X10 Mini Pro-B Servo - 8Kg (111 oz in), 0.08sec - Wide Voltage
- Low stock - 5 items left
The new X10 Mini Pro servo is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.
Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding 8.0Kgf.cm torque and an amazing 0.08sec speed.
Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gear to improve durability and precision. It is definitely a superb micro servo for a fantastic flight.
Features:
- Ultra High Torque & Excellent Speed
- Programmable
- Supports Soft Start
- Hardened Steel Gears
- Anodized CNC Aluminium Case
- Smaller Size and Larger Travel Angle
- Ideal for Competition Gliders and Large Scale Gliders
Specifications:
- Voltage Range: DC4.8V-8.4V
- Torque: 4.5Kgf.cm@4.8V, 6.0Kgf.cm@6.0V, 7.2Kgf.cm@7.4V, 8.0Kgf.cm@8.4V
- Speed: 0.13sec/60°@4.8V, 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±60°=120° Total
- Temperature Range: -10℃.......+65℃
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 30mm*10mm* 28mm±0.2mm
- Weight: 20g±10%

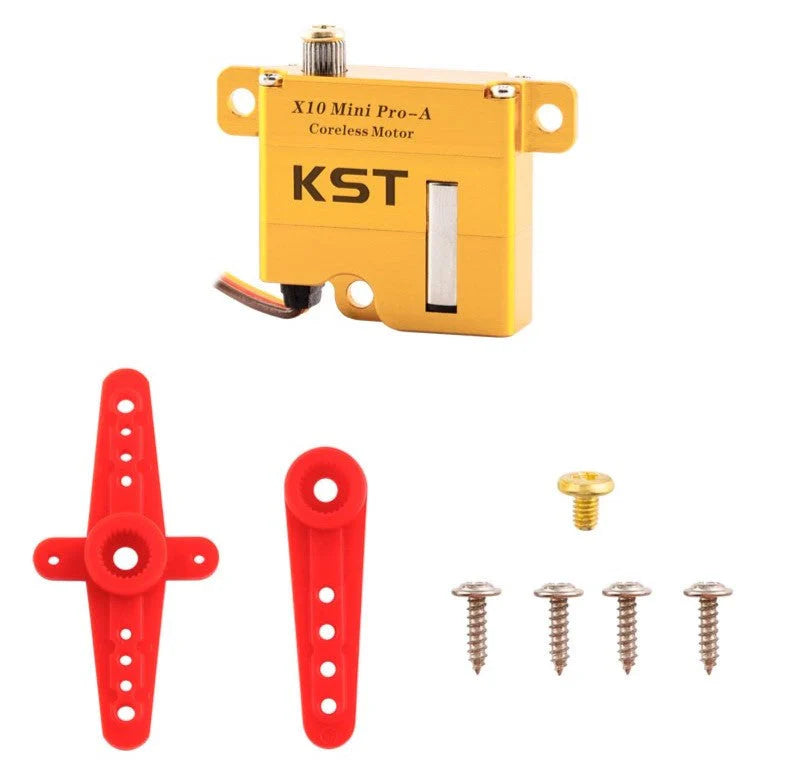

Package Includes:
1 * X10 Mini Pro Servo
1 * Servo Horn Screw
2 * Plastic Servo Horns
4 * Mounting Screws
