SM Modell Bau MicroVario (for TEK Vario)

Truly tiny! And yet the MicroVario is a fully-fledged TEK variometer with high-quality pressure sensors and a three-axis accelerometer. It offers full telemetry support for Jeti Duplex , Multiplex M-Link , Graupner HoTT , Futaba , JR DMSS , FrSky , Spektrum (via Spektrum adapter), and PowerBox Core .

Link to the English Manual: HERE

We offer the TEK probes separately.

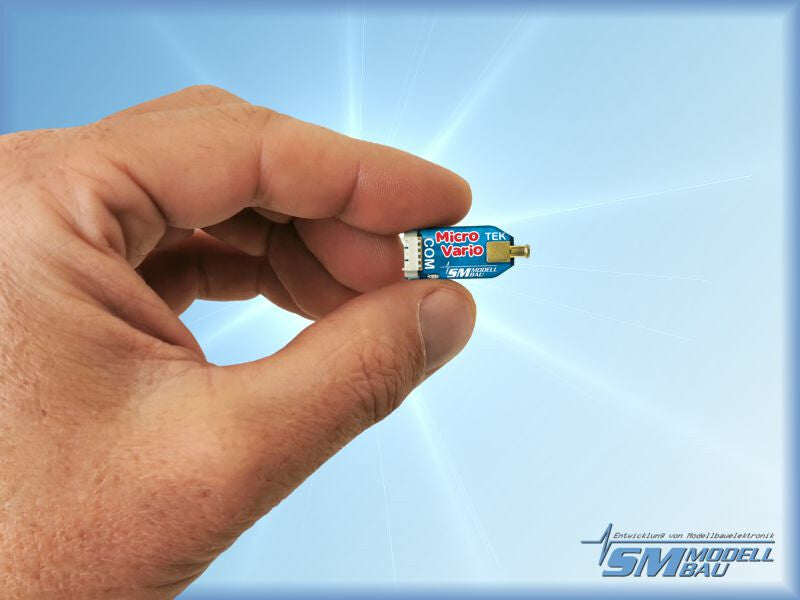

Extremely small and extremely light weighing only 1.8 g without cables.

The  MicroVario uses a built-in high-resolution pressure sensor and telemetry to provide a high-quality variometer reading. Its integrated TEK port also allows the use of compensation nozzles. This results in a variometer function that accurately displays true climb and sink rates, independent of stick thermals. For precise altitude measurement, even when using a TEK nozzle, a second pressure sensor is integrated, delivering accurate altitude data regardless of airspeed.
When using a TEK nozzle, airspeed is also measured and displayed without the need for additional sensors.

The built-in 3-axis accelerometer with a measuring range of up to 16 g provides information about the stresses during flight.

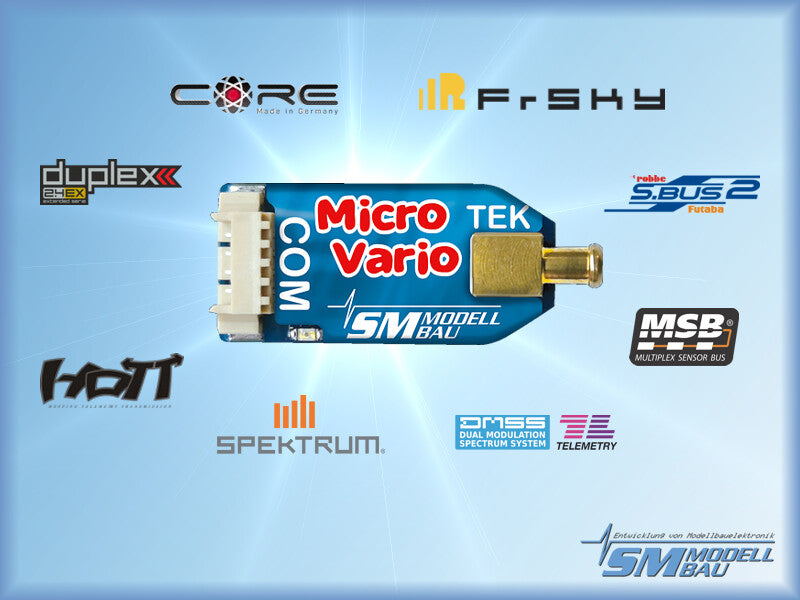

In line with our philosophy of supporting as many systems as possible, the MicroVario also supports telemetry from :

Jeti Duplex
Multiplex M-Link
Graupner HoTT
Futaba
JR DMSS
FrSky
Spectrum (via Spectrum adapter)
PowerBox Core
The telemetry method used only needs to be specified once in the MicroVario settings. This is done either via our PC program "SM MicroVario Tool " or with the UniDisplay. HoTT is selected by default .

And this is what the MicroVario can do:

• High-resolution vario with TEK connection
• Altitude measurement with a second pressure sensor with automatic zeroing after switching on
• Airspeed measurement via a TEK nozzle
• Integrated 3-axis accelerometer up to ±16 g
• Full telemetry support for Jeti Duplex (EX), Multiplex M-Link , Graupner HoTT ,
• Futaba FASSTest S.BUS2, JR DMSS , FrSky , Spektrum and PowerBox Core
• Connection for receiver signal for remote control of certain functions
• Measurement of receiver battery voltage
• Current status is indicated via LED.
• Direct viewing of the measured values live with our UniDisplay
• Parameter settings possible via PC, UniDisplay and telemetry
• Free firmware updates are possible via PC using our USB interface (Order No. 2550) or with existing USB connection cable.
• Due to its compact size and low weight, it can be used almost anywhere.

For technical specifications and the complete range of functions, please refer to the operating instructions .

Technical Data:

Vario resolution: .001 m/s
Vario noise: typically less than 0.02 m/s
Resolution of altitude measurement: .1 m
Accelerometer: 3 axes up to 16 g
Power supply: from receiver supply (from 3.6 V to a maximum of 8.5 V)
Power consumption: approx. 24 mA
Dimensions: 26 (33 with plug) x 12 x 7 mm
Weight: 1.8 g without cable / 5.4 g with 30 cm standard cable
Connections:
  1 x connection for telemetry and power supply ("Link")
  1 x servo pulse input from receiver
  COM port for UniDisplay and firmware update
  Port for TEK nozzle
