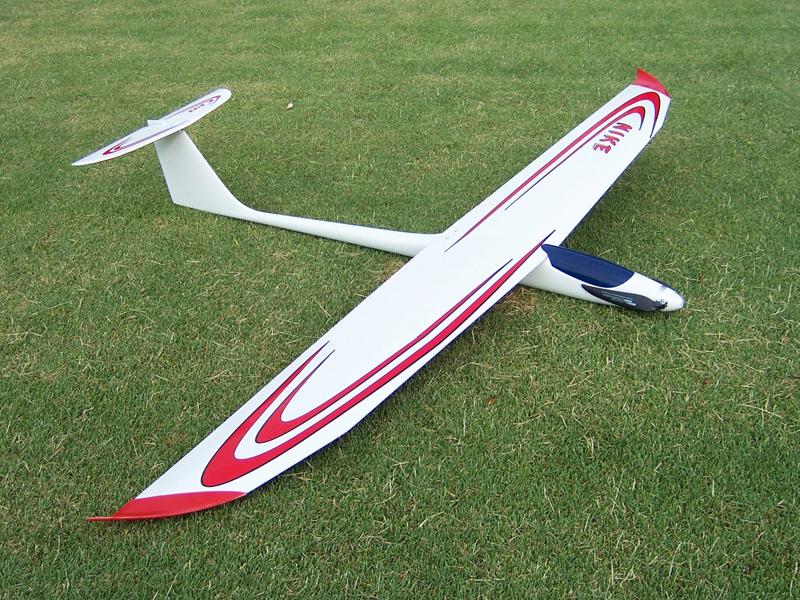

This 1.7m "warmliner" features a lightweight but strong carbon reinforced gelcoat fiberglass fuselage and canopy and two piece, foam core, wood sheeted wing, along with a removable full flying horizontal stab, letting it pack easily for transport to aerobatic, slope and even thermal soaring fun.
A nice, all rounder type airfoil lets the Nike EVO slice through the air with that high speed swoosh with each speed pass and still be able to float around decently in thermals, while a full flying stabilator and large control surfaces make her extra maneuverable for excellent aerobatic performance, the well sized Ailerons will allow for the use of flaperons, making landing at those smaller strips easier.
The electric power system listed below, made from components we normally stock should give excellent performance for most pilots. If you would like help selecting an alternate power system for this model, please reach out to us, we are happy to help get the perfect match for you.
Manual: CLICK HERE
Specs and recommended power system:
- Wingspan: 1700 mm
- Fuselage Length: 1135 mm
- Flying Weight: From 1.2 kg
- Wing Area: Approx. 27.8 dm²
- Wing Loading: From approx. 43.2g/dm²
- Airfoil: MH32
- RC functions: Elevator, Motor, Ailerons
- Battery: 3S or 4s 2200-3300mAh
- Motor: Emax GT2826 860kv
- Prop: 13x8
- Spinner: Turbo 42mm with 5mm Turbo Spinner collet
- ESC: 80A
- Required Servos: Fuselage: One Emax ES3352, Wing: Two Emax ES09MD
