1806 2280kv
- In stock, ready to ship
- Inventory on the way

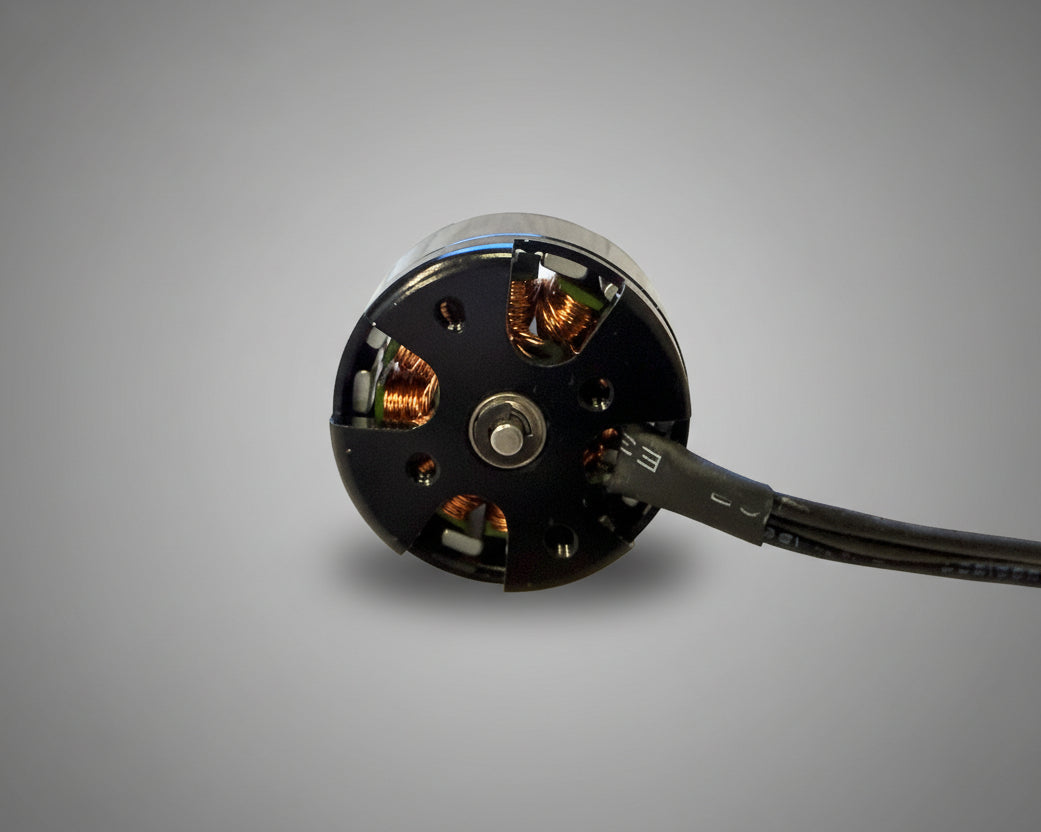

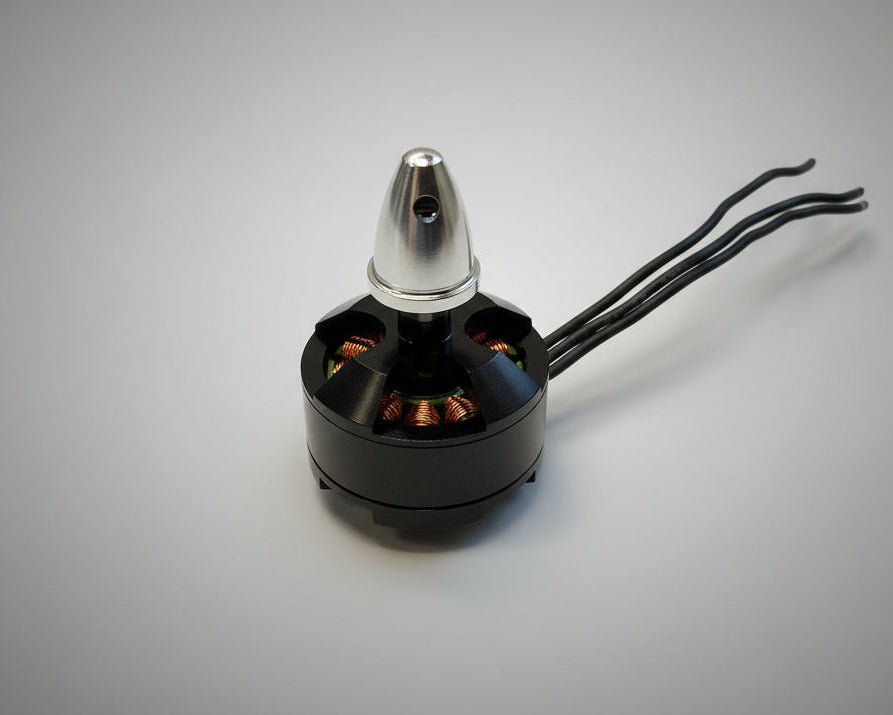

A simple 1806 brushless outrunner with 2280kv. Great for planes like our Simple Stick.
Specs:
- KV 2280
- Stator Diameter: 18mm
- Stator Length: 6mm
- Shaft Diameter: 5mm
- Dimensions: 23x15.6mm
- Weight: 34g
Suggested Setup for the Aloft Hobbies Silly Stick and similar models:
High Performance Setup
Prop: 8.5 x 4
Batery: 2s 1000mAh 20C
Estimated Max Amps: 15.68
Estimated Max Watts: 114
Estimated Thrust: 489g (17.2oz) 2.22:1 Thrust to Weight
Estimated Motor Run Time: 3.3 min at WOT, 9 min Mixed
Trainer Setup
Prop: 6x3
Battery: 2s 1000mAh 20C
Estimated Max Amps: 7.3
Estimated Max Watts: 55
Estimated Thrust: 311g (11oz) 1.4:1 Thrust to Weight
Estimated Motor Run Time: 7.0 min at WOT, 14 min Mixed
For other applications, maximum power can be reached with a small prop and a 4S battery. If you would like help selecting the right setup for your application, please contact us and tell us a bit about your application and we should be able to calculate an excellent combination for you.
