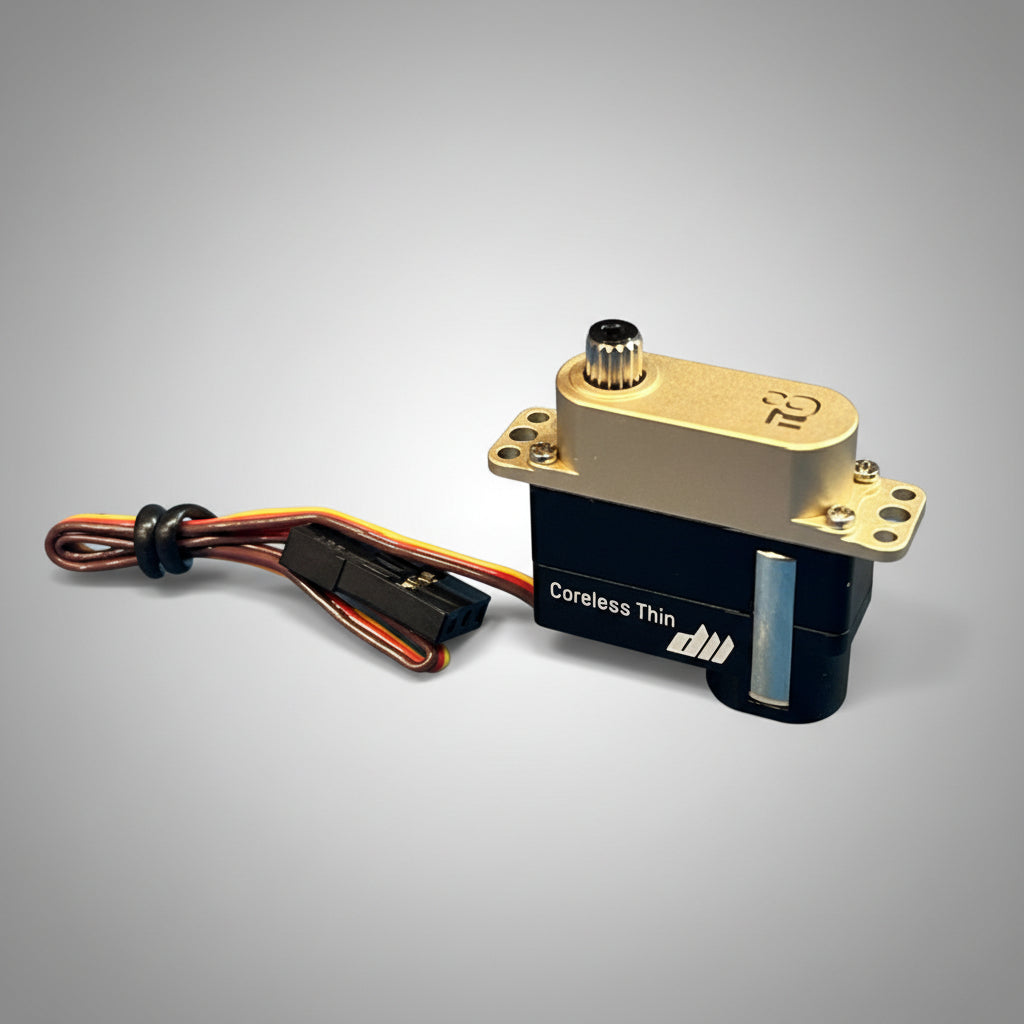

Dualsky T8 Servo 3.0kg (41.6 oz in), 0.08 sec - 10.6g

Dualsky presents the T8 servo, a quality option for those wanting a full metal, high voltage servo with all the speed, power and robustness of more expensive servos, but don't want to break the bank.

A programmable digital circuit (via the Dualsky USB LINK MP Tool) and a quality potentiometer are the brains of the operation and the brawn is an ultra responsive coreless motor, which drives a strong, ultra low low backlash steel gear train. The output spline is supported at each end by quality ball bearings, all in a CNC machined Aluminum case for superb heat dissipation.

 The T8 also features a wide voltage range from 3.8v to 8.4v, for use with single or two cell LiPo power, or anything in between. Its 8mm thickness lets it fit into many thin servo pockets making them a great choice for F3K, F5K, eRES, F5J Lite, F5J or anywhere else you need a robust, lightweight, fast, powerful and affordable high voltage servo.

Specifications:

• Voltage Range: 3.8V-8.4V

• Torque: 1.3 kgf.cm@3.8V, 2.0 kgf.cm@6.0V, 2.6 kgf.cm@7.4V, 3.0 kgf.cm@8.4V
• Speed: 0.16sec/60°@3.8V, 0.12sec/60°@6.0V, 0.09sec/60°@7.4V,0.08sec/60°@8.4V

• Working Frequency: up to 333Hz

• Deadband/Resolution: 2µs (Programmable)
• Default Travel Angle: ±50°=100° Total
• Max Travel Angle: 180°
• Case Material: Aluminum Alloy

• Motor Type: Coreless DC Motor

• Gear Set Material: Hardened Steel

• Position Sensor: Potentiometer

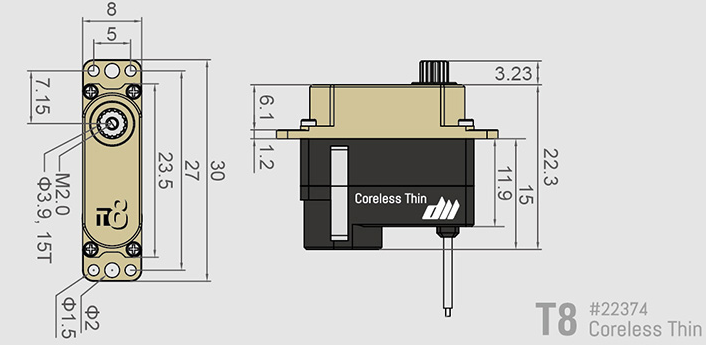

• Case Dimensions: 23.5mm*8mm* 22.3mm

• Weight: 10.6g with wire (150mm With JR Plug)

• Horn Spline Φ3.9mm 15T
