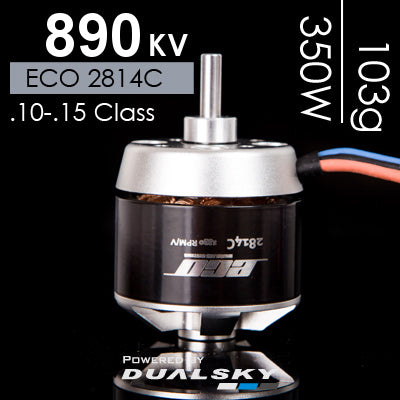

Dualsky ECO 2814C 890kv Motor


Regular price$26.10
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

Good all around motor for medium to light airframes.

Designed for use with sport or scale planes that require .10 - .15 glow engine. The C-Series motors are powerful yet very light and are a solid choice for your next build. Dualsky motors are manufactured to high tolerances using high quality materials and are fairly priced. So whether you fly in competitions or just love free flying, the DUALSKY C-Series motors will help you keep your all up weight down and your thrust to weight ratio up.

Comes with motor mounting screws, aluminum motor mount, female bullet connectors for the ESC and a bolt on prop hub with a 6mm shaft.

Specifications:

Eco Series ECO 2814C
KV 890
Stator Wind
Stator Teeth / Mag. Poles 12 / 14
Weight w/o wires 103 grams
Outer Diameter 35mm
Length 34mm
Shaft Dia. 4mm
Motor Mount Hole Spacing 19x25mm
Motor Idle Current @ 10V 1.05A
Winding Resistance 57 mOhm
Max Efficiency Current 20A
Burst Current (15s) 30A
Peak Power Output (15s) 350 Watts
Recommended ESC 45A min.
Recommended Propellers 13x6 3s / 10x5 4s
Prop Thrust Test Data
Prop Thrust Test Data
Airframe Recommendation .10 - .15 Glow
