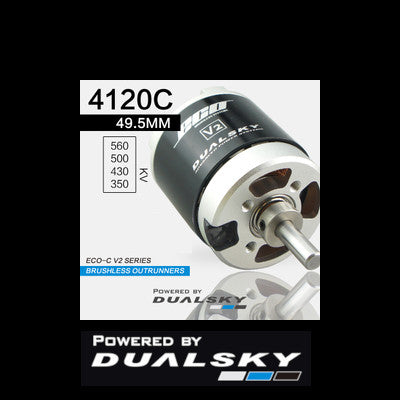

Dualsky ECO 4120C-V2 430kv Motor


Regular price$60.00
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

Great motor for airframes requiring XC-65-LITE or XC-6018BA

The C-Series V2 motors are powerful yet very light and are a solid choice for your next build.

Dualsky motors are manufactured to high tolerances using high quality materials and are fairly priced.

So whether you fly in competitions or just love free flying, the DUALSKY C-Series V2 motors will help you keep your all up weight down and your thrust to weight ratio up.

Comes with motor mounting screws, aluminum motor mount, female bullet connectors for the ESC and a bolt on prop hub with a 6mm shaft.

Technical info:

Eco Series ECO 4120C-V2
KV 430
Stator Wind 9 Turns
Stator Teeth / Mag. Poles 12 / 14
Weight w/o wires 280 grams
Outer Diameter 49.5mm
Length 45.2mm
Shaft Dia. 6 mm
Motor Mount Hole Spacing 30x30mm
Motor Idle Current @ 10V .9 A
Winding Resistance 29.2 mOhm
Max Efficiency Current 33A
Burst Current (15s) 55A
Peak Power Output (15s) 1320 Watts
Recommended ESC XC-65-LITE or
XC-6018BA
Recommended Propellers 5S 17x8 / 16x10
6S 15.x8 / 16x8
Prop Thrust Test Data  ns
Prop Thrust Test Data  ns
Airframe Recommendation For popular 70E 3A &
3D Airplanes
