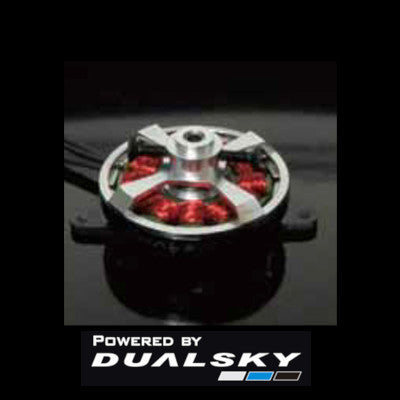

The ESC is integrated into the motor mount!
Designed for use in lightweight (150g max) F3P planes or indoor freestyle ships. The XM2203 RTR is powerful, lightweight and ready to run. The integrated 6 amp ESC make this motor very easy to install, NO soldering required!!
Features, include a very lightweight semi open base, motor design, high torque stator and windings, and of course the built-in 6 amp ESC with a 2 amp BEC.
So whether you compete in events or just love free flying, the Dualsky XM2202 RTR will help you keep your all up weight down and your thrust to weight ratio up.
Comes with mounting screws, prop saver o-rings, and two prop hub shims.
Specifications:
| X-Motor Series 24 | XM2203RTR-17 |
| KV | 1600 |
| Stator Wind | 17 Turns Y-Termination |
| Stator Teeth / Mag. Poles | 12 / 14 |
| Weight w/ wires | 20.7grams |
| Outer Diameter | 27mm |
| Length | 19.4mm |
| Shaft Dia. | 3.0mm - Hollow |
| Motor Mount Hole Spacing | 32 x 32 mm |
| Motor Idle Current @ 10V | 0.3A |
