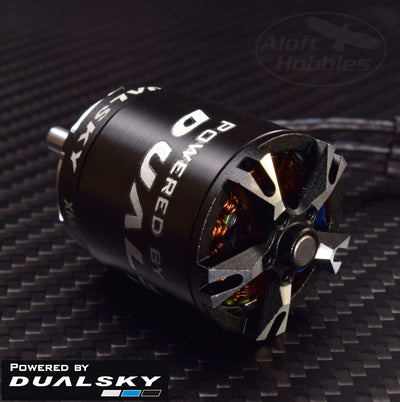

An out-runner motor designed specifically for electric gliders.
A longer stator and a higher wind count results in a motor that has the torque to spin the larger propellers generally found on electric gliders.
This motor will best fit an electric glider that has some room in the nose. The motor wires will need clearance between the fuselage wall and the motor bell. If your glider has a slender nose, have a look at DualSky's long-shaft motors also found in this category.
Like all of DualSky's products these motors are very well machined, have tight windings, tight magnetic tolerances and use quality components throughout.
DualSky has chosen to use a locking collar instead of an e-clip to retain the motor bell and shaft. They believe that machining an e-clip groove into the motor shaft would weaken it. The locking collar can be removed if there is a need for more exposed motor shaft for the propeller collet.
Please see the detailed drawing above to determine whether this motor will be a good fit for your particular aircraft.
|Stator Wind||9 Turns|
|Stator Teeth / Mag. Poles||12 / 14|
|Motor Mount Hole Spacing||16 x 19 mm|
|Motor Idle Current @ 10V||1.9A|
|Maximum Efficiency Current||15A|
|Burst Current (15s)||30A|
|Peak Power Output (15s)||360Watts|
|Recommended ESC||30A min|
|Prop Thrust Test Data||see below|
|Recommended Prop||(3s) 9x7-10x6-10x8|
|Airframe Recommendation||F5J 1000-1500g Up to 3.5 meter span / 800-2000g RC gliders|
