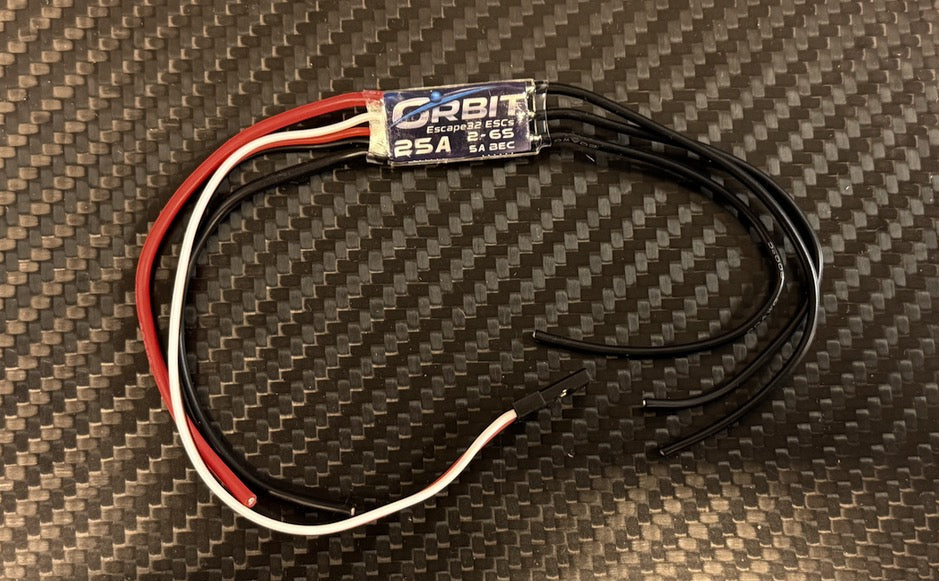

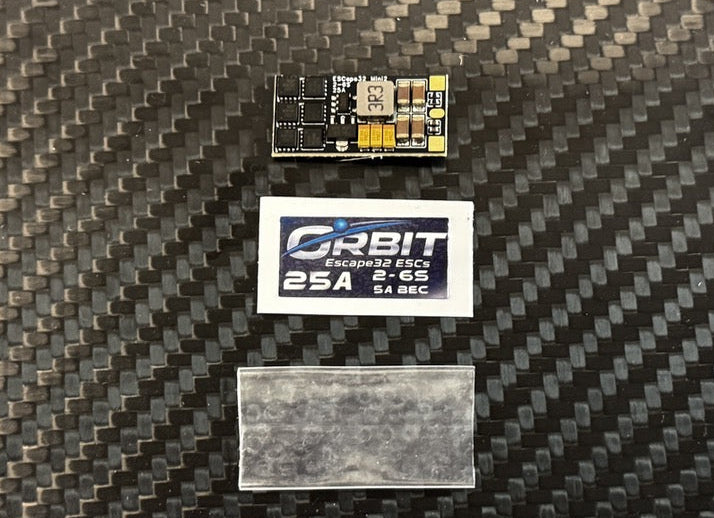

Orbit 25A ESC with Escape32 & telemetry!

This ESC does it all, air, land or sea. Simple or cutting edge applications. Very efficient motor drive that is smoother than you have experienced and all in a tiny bit of space! And easy to work setup, and offer telemetry data!

Yes, this ultra compact 25 Amp motor speed control blends quality electrical components with new ESCape32 firmware, offering smooth and efficient motor drive, fast transitions from a complete stop to full throttle when needed, robust direction reversals for reversible motor applications, and maximum hardware support.

Can be configured as a brushed or brushless ESC as needed!!

The Orbit 25A is able to run on 2s to 6s and has a powerful 5A adjustable BEC, which can be adjusted to the ideal voltage to get the maximum performance from your servos..

Program via the ESCape32 Wi-Fi Link (sold separately) it easily connects to you smartphone or computer, there's no app or software to download, just connect to the wifi and you are good to go.

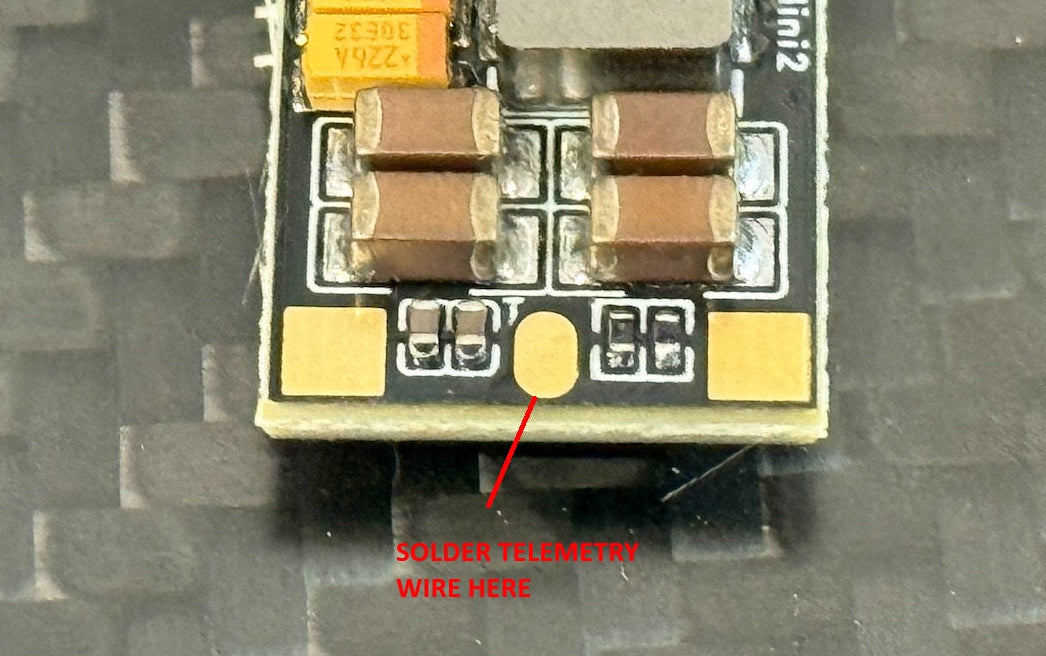

These ESCS also offer telemetry, negating the need for several external sensors. Communicates via S.port (FrSky), KISS (KISS FC) and CRSF (TBS Crossfire). Solder a single wire to the telemetry pad, connect it you receiver/Flight controller's Telemetry port and you'll get the following telemetry, all built into the ESC!

• Total Battery Voltage

• RPM

• ESC Temperature

Specifications:

• Dimensions: 25 x 12mm (without wires)
• Weight: 3g (without wires)
• Amp rating: 25A
• Voltage Range: 2-6S
• Fully programmable!
• For land, fixed wing and drone applications
• Special modes for RC Crawlers!
• Compatible with Brushed or Brushless motors
• BEC: 5.5, 6.5, 7.4, or 8.4 volts, @5 amps continuous
• MCU: STM32G071
• LED: RGB
• 200uF caps, TVS diode ready to rip!
• Custom startup tunes
