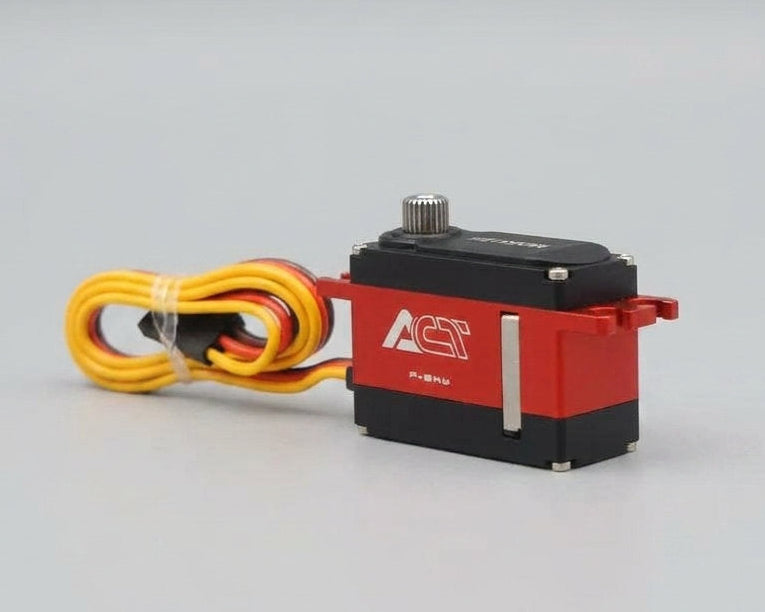

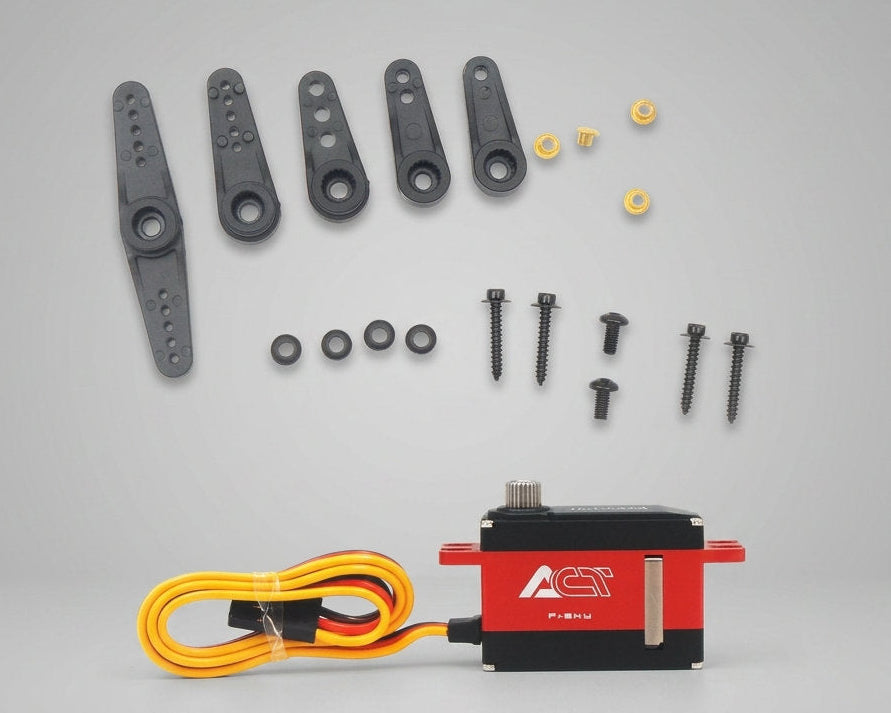

FrSky ACT MD5312H 35.5Kg (423.6oz in), 0.08 sec - 41.15g

$45.00
/
Shipping calculated at checkout.
  • Low stock - 8 items left
  • Inventory on the way

The ACT series coreless servos utilize a fully CNC machined aluminum protective case and benefits from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.

Features:

  • High durability with metal gear and all-aluminum CNC machined protective case
  • 8.4V High Voltage Capability, Offering Excellent Torque with Optimal Speed Performance
  • Integrated Dual Precision Ball Bearing and Potentiometer

Dimensions: 35.5×15×25.3mm (L×W×H)
Weight: 41.15g
Horn Spline: Φ6 25T
Stall Current: 2.7A@6.0V / 3.5A@7.4V / 3.9A@8.4V
Operating Voltage: 4.8~8.4V
Refresh Rate: 1520us/50Hz
Performance:
@6v, 24.4 kgf.cm/338.9 Oz-in @0.11 sec/60°
@7.4, 26.2 kgf.cm/363.8 Oz-in @0.09 sec/60°
@8.4, 30.5 kgf.cm/423.6 Oz-in @0.08 sec/60°
