FrSky Tandem XE

Regular price$612.00
Shipping calculated at checkout.
FrSky Tandem XE
FrSky Tandem XE
FrSky Tandem XE
FrSky Tandem XE
FrSky Tandem XE
FrSky Tandem XE

We are offering the XE with either Standard Stick Ends or with 3 Axis Stick Ends (for a limited time).

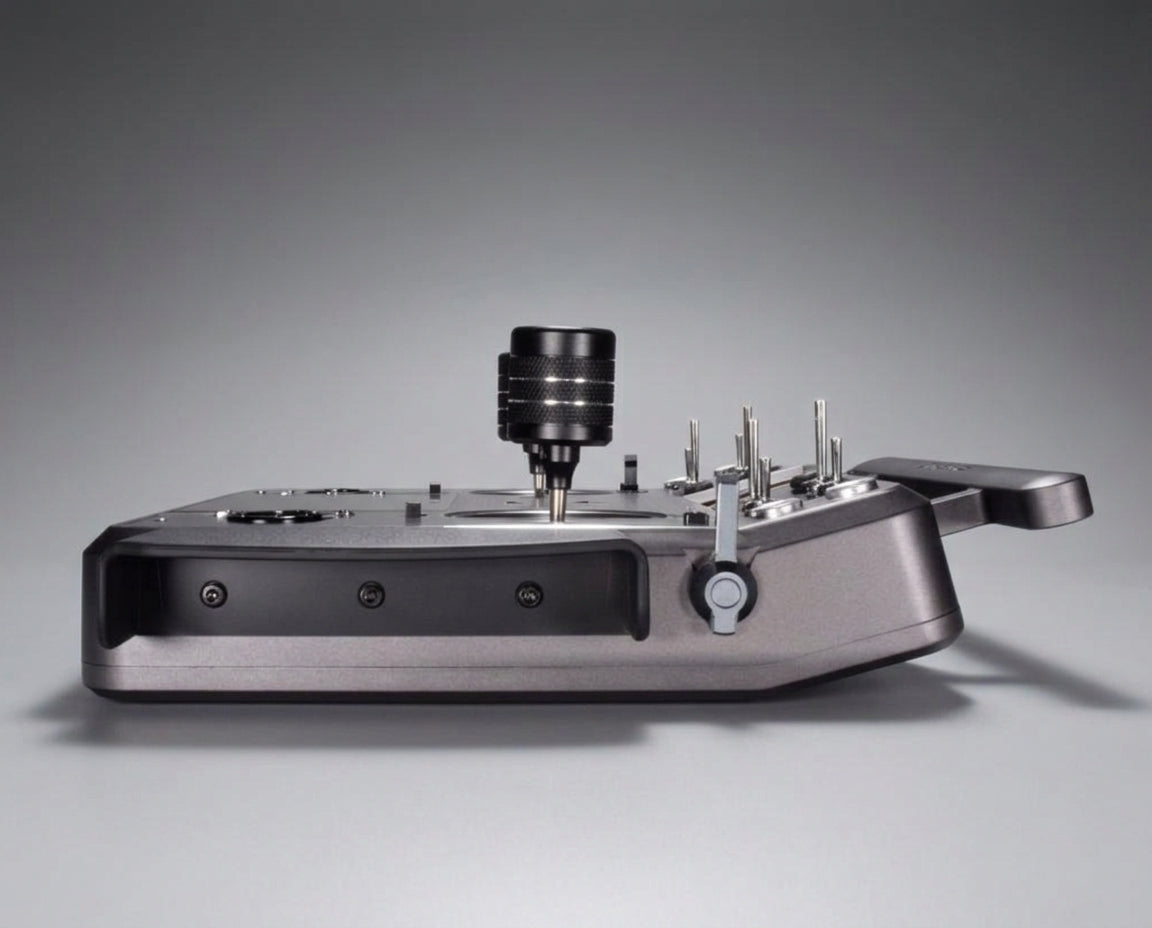

The Three Axis Sticks add fingertip control of a camera or anything else you can think of to your Tandem XE. They feature a high quality Hall Effect sensor for great precision, and a top mounted button. It is very well machined and matches the style and functionality of the Tandem XE.

Building on the TANDEM series radios which apply simultaneous working 2.4G & 900M dual-band technologies, FrSky have released the much awaited TANDEM XE tray radio. The XE is the largest form factor radio in the TANDEM series, developed to meet the needs of RC users who enjoy tray radio design, combined with the flexibility and quantity of switch inputs. It’s stunning looks, together with its high quality build make it an obvious upgrade for the TARANIS X9E fans!

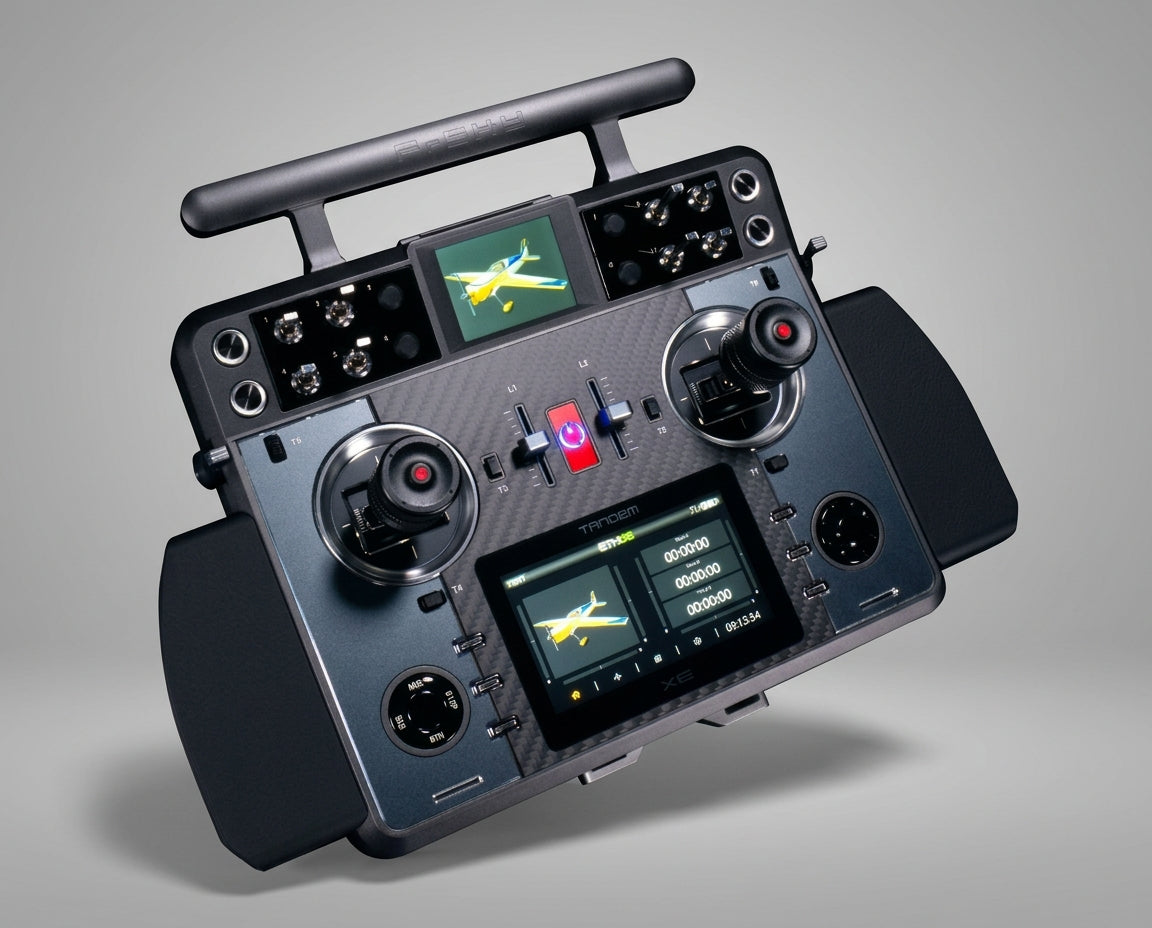

TANDEM XE adopts a dual-screen design, the main screen is a 4.3-inch color touch-screen which is used to operate ETHOS such as model configuration. A second smaller 2.4-inch color screen is positioned on the top of the radio to meet the needs of RC users who wish to have additional information separately displayed. The content displayed on the additional screen can be programmed (such as by Lua, configurable and personalized by user) in the system.

TANDEM XE has been designed with flexibility in mind. It not only features multiple switch input slots for further extending the control needs, it also benefits from customizable switch blocks which can also be replaced with alternative blocks with more input slots. Additional design features have been included to meet the needs of wider RC user communities, for example controlling the forward and reverse movement of RC crawlers can be achieved by customizing the side All CNC metal levers with the optional self-centering type accessory. Likewise using the optional 3-axis extenders mounted on the gimbals offers many possibilities when used with RC ground vehicles. The XE includes a foldable stand/frame which can be easily folded away in the bottom of the radio body, and its design also provides a good solution to attach the tray radio strap.

In order to save the user the trouble of deciding the storage capacity, TANDEM XE comes with a built-in 8G flash storage that offers plenty of file storage to meet all of your radio’s storage needs, along with high data transmission speed. And for the users who are looking for a bigger battery capacity than the included XE 4000mAh Li-Po battery, the XE offers a bigger battery bay that can accommodate larger battery packs if needed.


  • Carbon Fiber Center Panel + CNC Metal Panel
  • Modular Design | Replaceable Blocks with Customized Multiple Inputs
  • MC11 All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing
    • Adjustable 45° / 60° stick travel (Additional Travel Limiter Tool is required)
    • 8° rotatable panel
  • 6 Trims & 4 Retractable Knobs & 2 All CNC Metal Side Levers & 2 Linea Sliders
  • Main Color Touch-Screen Display with Operating ETHOS
  • Top Color Screen with User Configurable Data Display (such as by Lua)
  • 6 Quick-Mode Custom Buttons
  • Lite Type External Module Bay
  • Fordable Radio Stand/Frame also for Attaching Radio Strap
  • Built-in TD 900M/2.4G Dual-Band Internal RF Module
  • Built-in 8G flash storage
  • External TF card slot for storage extension
  • Haptic Vibration Alerts and Voice Speech Outputs
  • Supports Recharge System for 2S Li-ion Battery
  • High-speed PARA Wireless Training System
  • Big Size Battery Bay for the Battery Capacity Upgrade


  • Dimension: 345*262*82mm(L*W*H)
  • Weight: 1357g(Battery Excl.)/ 1492g(Battery Incl.)
  • Operating System: ETHOS
  • Internal RF Module: TD-ISRM
  • Number of Channels: 24 channels
  • Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
  • Operating Temperature: -10°C~60°C (14°F~140°F)
  • Battery Bay Size: 86*61*20mm(L*W*H)
  • Data Transmission & Charging Interface: USB Type-C
  • USB Adaptor Voltage and Current: 5V+0.2V, >2.0A
  • Built-in Flash Storage: 8G
  • Main 4.3” Touch-Screen Display Resolution: 800×480
  • Top 2.4” Color Screen Display Resolution:320×240
  • RF Compatibility: ACCST D16, ACCESS 2.4G, ACCESS 900M, & Tandem (TD)
