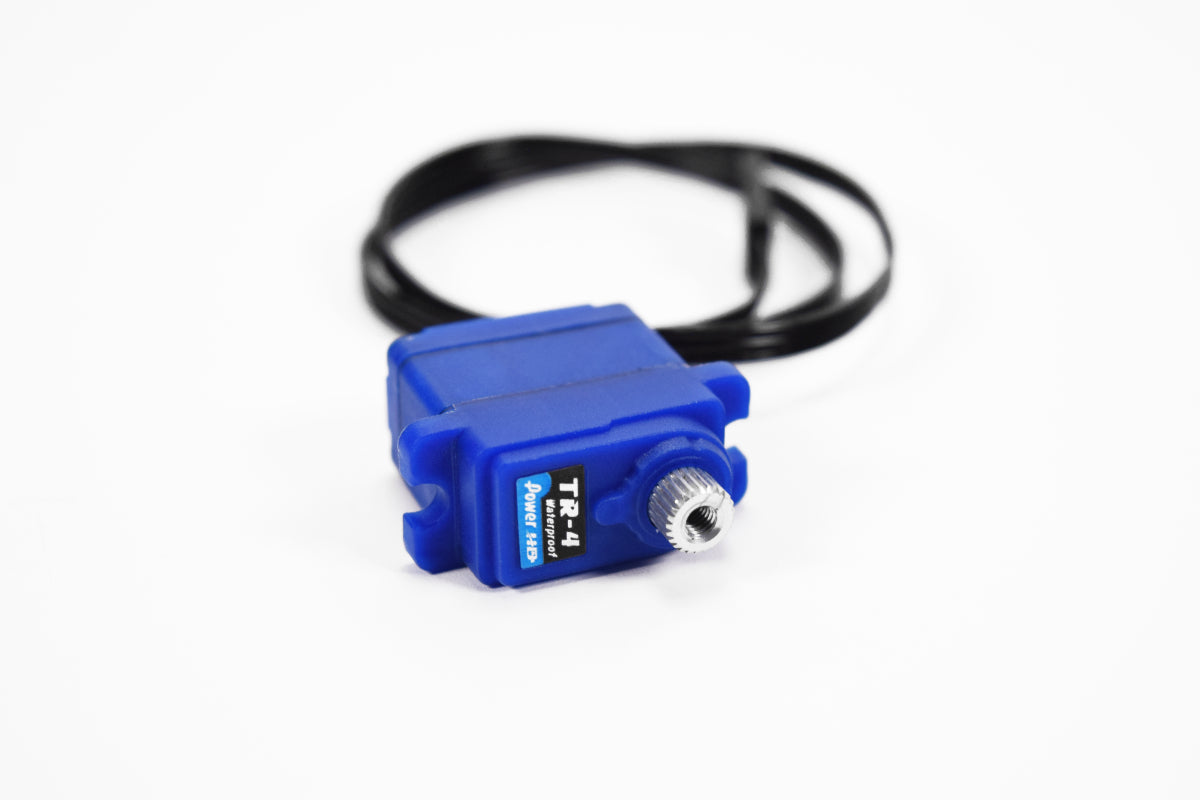

Power HD TR-4 2.6Kg (36.1oz-in), 0.10sec, 16g, Waterproof

$16.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way

A sub micro, waterproof servo, from Power HD.

From the R/C car industry, the Power HD TR-4 waterproof sub micro servo is ready to work in whatever application you need it for. It features a durable metal gear train as well as dual o-ring seals so it's able to take a dip in water and keep on going,

Included accessories are:

  • 1x Short Single Output Arm
  • 1x Long Single Output Arm
  • Servo Arm Mounting Screw

Specs:

Servo Type Digital
Gear Type Metal (Copper/Aluminum)
Stall Torque 1.8Kg.cm (25.0 oz-in) @4.8v | 2.2Kg.cm (30.6 oz-in) @6.0v | 2.6Kg.cm (36.1 oz-in) @7.4v
Speed 0.15sec/60°@4.8V | 0.12sec/60°@6.0V | 0.10sec/60°@7.4V
Dimensions 24 x 12.5 x 22.5 mm
Weight 16 grams
Voltage 4.8-7.4V
Frequency 1520μs / 50hz
Motor Type DC Motor
