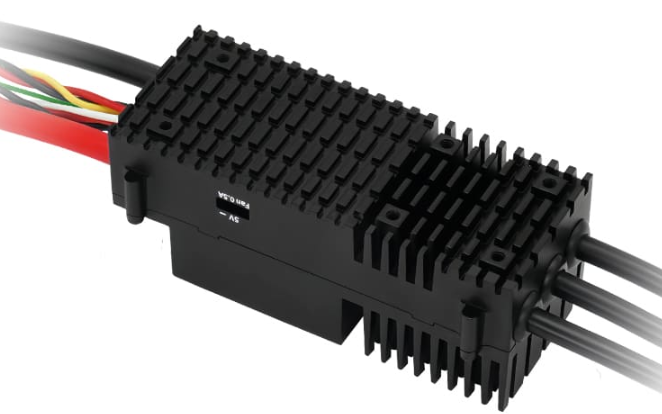

Sequre 200A PRO ESC 5-14S (ESCape32)

This is the result of an amazing firmware combined with the most bang for your buck  performance ESC we've ever used. From the moment we powered one of these on, we were impressed by the smooth motor operation, ease of programming and vast amount of features.

The Sequre 200 Amp Pro ESC is able to run in high power setups with its hefty 200A constant and 350A short burst rating. A plug in 5v fan assists with cooling through the all metal casing and a strong, 15A adjustable (via Dip Switches) BEC lets you provide your servos with the power they need while powerful ESCape32 firmware allows for easy tuning on your smartphone or any other Wi-fi capable device via wi-fi adapter (Sold separately), smooth and efficient motor drive, snappy throttle response and rapid stutter free motor reversal, custom startup tones and much more. It can even be programmed to run Brushed motors if desired.

(NOTE: These ESCs come programmed for crawlers and are not optimized for proper aircraft use out of the packaging. If you would like us to set one up for you, let us know in your order.)

That's not all, these ESCS offer telemetry, negating the need for several otherwise bulky sensors and are able to communicate via S.port (FrSky), KISS (KISS FC) and CRSF (TBS Crossfire). Connect the single green telemetry wire to your receiver/Flight controller's Telemetry port and you'll get the following telemetry, all built into the ESC!

• Total Battery Voltage
• Consumed mAh
• RPM
• Amps
• ESC Temperature

Features:

• 32-bit high performance processor STM32G071 @ up to 64MHz and 128KHz motor PWM frequency
• 8 Layer PCB, 3OZ immersion gold process
• High Power MOS combined with metal heatsink for good cooling efficiency.

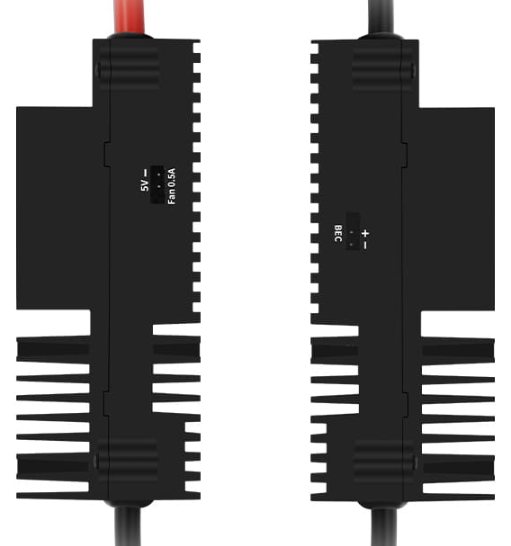

• 5V 0.5A attachable fan for cooling
• Temperature/voltage/current/stall protection
• DSHOT 300/600/1200, bidirectional DSHOT
• Supports uni and bidirectional running (Air/Ground)

• Sine startup mode, brushed mode, hybrid mode (for cars) (sensored/sensorless)
• Servo PWM, Oneshot125, automatic throttle calibration
• Analog/serial/iBUS/SBUS/SBUS2/CRSF input mode
• Variable PWM frequency, active freewheeling

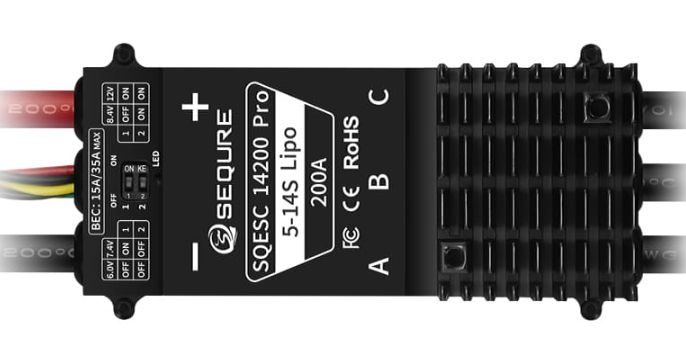

• BEC supports adjustable outputs of 6V/7.4V/8.4V/12V, 15A/35A Max

• KISS/iBUS/S.Port/CRSF telemetry in the form of: Total Battery Voltage, Consumed mAh, RPM, Amps and ESC Temperature
• Customizable startup music/sounds

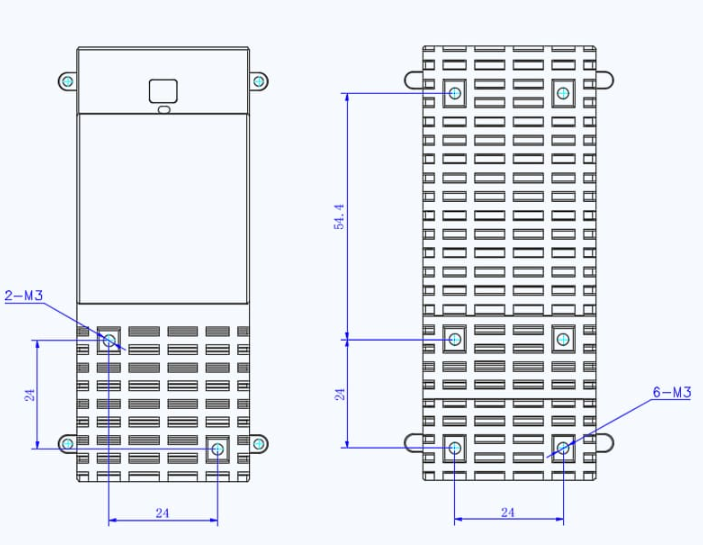

Basic dimensions less wire 96mm x 46mm x 38mm and about 293 grams.
