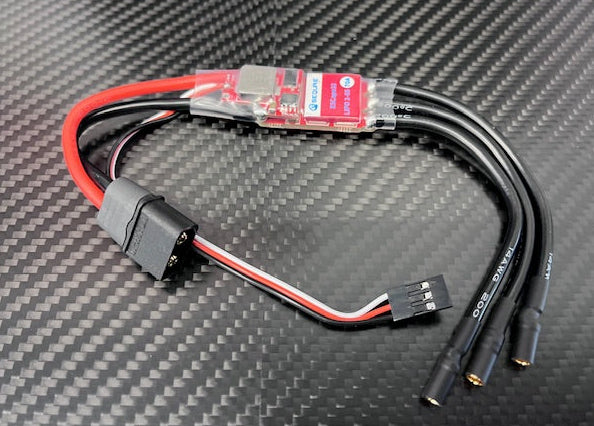

Sequre 70 amp ESC 2-6S (ESCape32)

$47.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way

This is the result of an amazing firmware combined with the most bang for your buck  performance ESC we've ever used. From the moment we powered one of these on, we were impressed by the smooth motor operation, ease of programming and vast amount of features, not to mention that this 70 A ESC is as small and compact as some 12A ESCs we have seen.

The Sequre 70 amp ESC is among the smallest ESCs of its class small in size, yet able to run those high power motors with its hefty 70A constant and 110A short burst rating. A strong, 4A adjustable (via soldering bridges) BEC lets you provide your servos with the power they need while its incredibly small and compact size allows it to fit in tight fuselages, such as in our Xray Electric Pylon Racer. It is also equipped with the powerful ESCape32 firmware for easy tuning on your smartphone or any other Wi-fi capable device via wi-fi adapter (Sold separately), smooth and efficient motor drive, snappy throttle response and rapid motor reversal, custom startup tones and much more. It can even be programmed to run Brushed motors, for you R/C crawler guys.

That's not all, these ESCS offer telemetry, negating the need for several otherwise bulky sensors and are able to communicate via S.port (FrSky), KISS (KISS FC) and CRSF (TBS Crossfire). Connect a single wire from the ESC's Telemetry solder pad to your receiver/Flight controller's Telemetry port and you'll get the following telemetry, all built into the ESC!

  • Total Battery Voltage
  • Consumed mAh
  • RPM
  • Amps
  • ESC Temperature

Lastly, 3.5mm bullet connectors and an XT60 are preinstalled for plug and play operation!

Quick video of our testbed, driven by the Sequre 70A on 6S:

Features

  • 32-bit high performance processor STM32G071 @ up to 64MHz and 128KHz motor PWM frequency
  • 8 Layer PCB, 3OZ immersion gold process
  • High Power MOS combined with metal heatsink for good cooling efficiency.
  • Temperature/voltage/current/stall protection
  • DSHOT 300/600/1200, bidirectional DSHOT
  • Supports uni and bidirectional running (Air/Ground)
  • Sine startup mode, brushed mode, hybrid mode (for cars) (sensored/sensorless)
  • Servo PWM, Oneshot125, automatic throttle calibration
  • Analog/serial/iBUS/SBUS/SBUS2/CRSF input mode
  • Variable PWM frequency, active freewheeling
  • BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A.
  • KISS/iBUS/S.Port/CRSF telemetry in the form of: Total Battery Voltage, Consumed mAh, RPM, Amps andESC Temperature
  • Customizable startup music/sounds


Basic dimensions less wire 45mm x 18mm x 9mm and about 10 grams.
