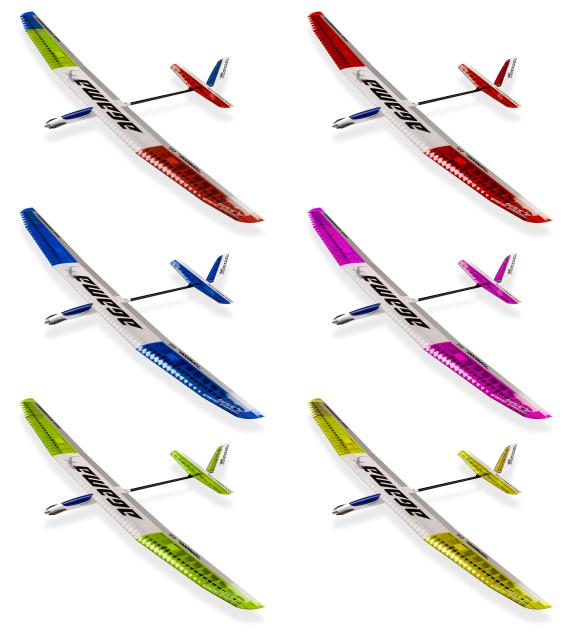

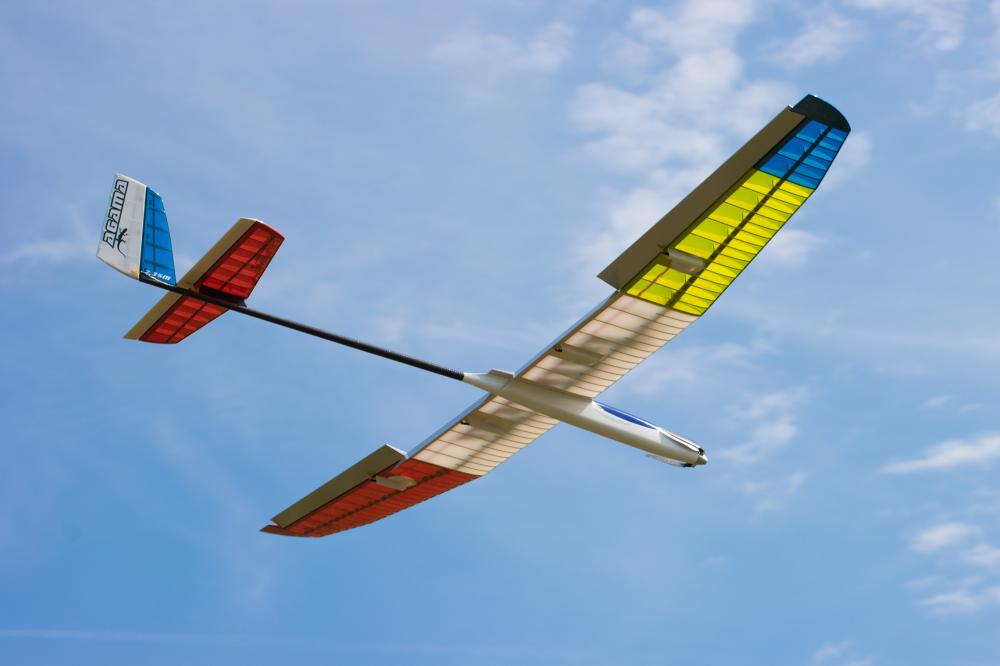

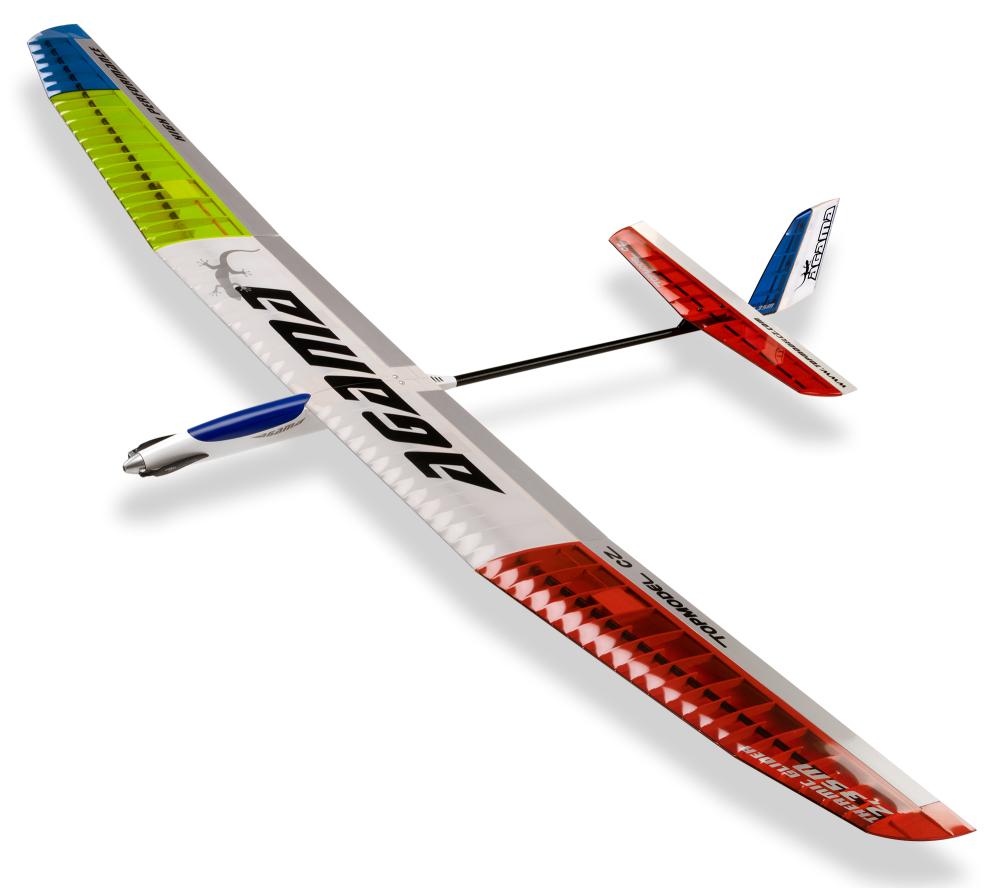

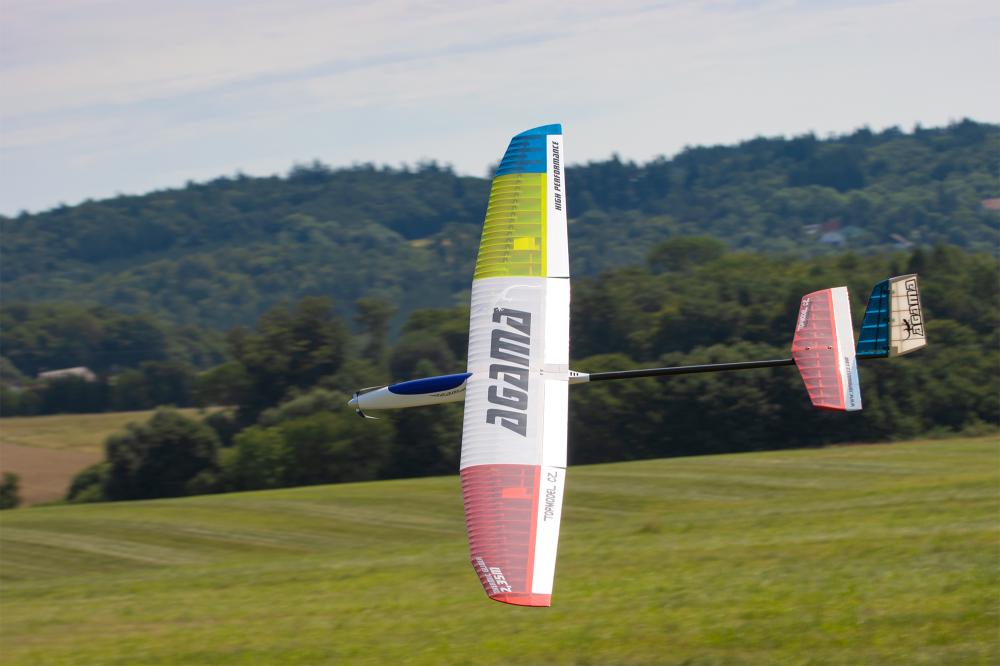

The Agama features a lightweight but strong carbon reinforced gelcoat fiberglass and carbon pod and boom type fuselage and a 2.35m, open structure two piece balsa with carbon tube spar wing, along with a removable horizontal stabilizer for transport to your site for sport or competition thermal soaring fun.
An AG airfoil gives the Agama excellent thermal performance while also letting her penetrate upwind. Large flaps and Ailerons allow for crow/butterfly mixing for landing at your smaller airfields.
Manual: CLICK HERE
Specs and recommended power system:
- Wingspan: 2350 mm
- Fuselage Length: 1410 mm
- Flying Weight: From 1.2 kg
- Wing Area: Approx. 50 dm²
- Wing Loading: From approx. 24g/dm²
- Airfoil: AG
- RC functions: Elevator, Rudder, Motor, Ailerons, Flaps
- Battery: 3S 2000-2700mAh
- Motor: Dualsky XM2838EG-9L
- Prop: 10x4
- Spinner: 32mm with 4mm collet
- ESC: 40A
- Required Servos:
- Fuselage: Two BlueBird BMS-125WV+ or Emax ES09MD
- Wing: Four BlueBird BMS-115HV+ or Emax ES09MD with modification to included mounts.
